Compliance:
KT, DM junction boxes and wall mounted enclosures
Description:

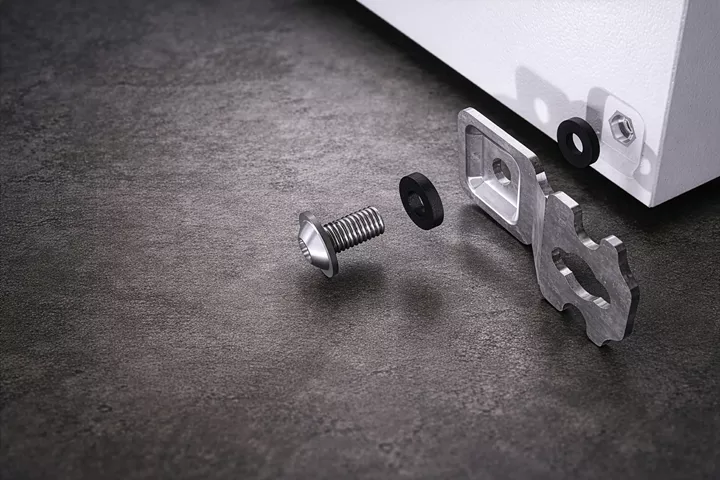

Suitable for wall mounting. Can be installed in both vertical and horizontal positions.
Allows the enclosure to be mounted onto pre-installed wall bolts using a hanging method.
Can be mounted externally to the enclosure.
Complies with IEC 62208 and UL 50E standards.
Load capacity: 2800 N per bracket in vertical mounting, 1500 N per bracket in horizontal mounting.
Wall Distance:
10mm (0.40")
Relevant Dimension:
Compatible with all enclosure sizes
Material:
DC01 Carbon Steel
Surface Finish:
Zinc plated
Supply Includes:
4 pcs wall brackets
| | | | Product Code |
|---|
| 2D DXF | 3D STEP | 971.300 |
