Compatibility:
All TEOS and NEO enclosures
Description:

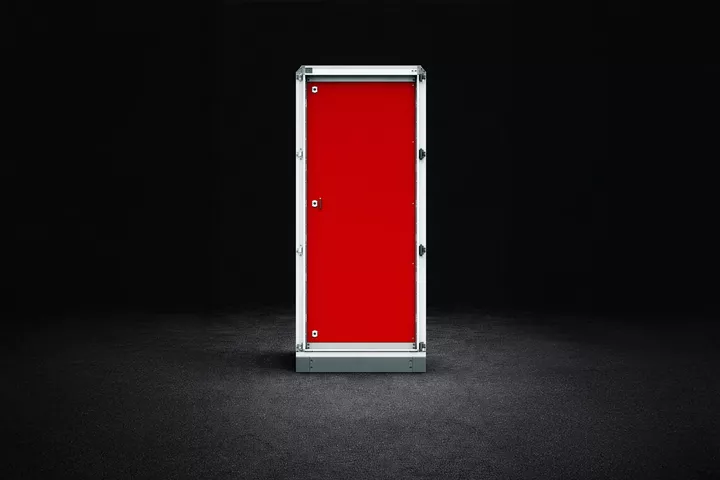

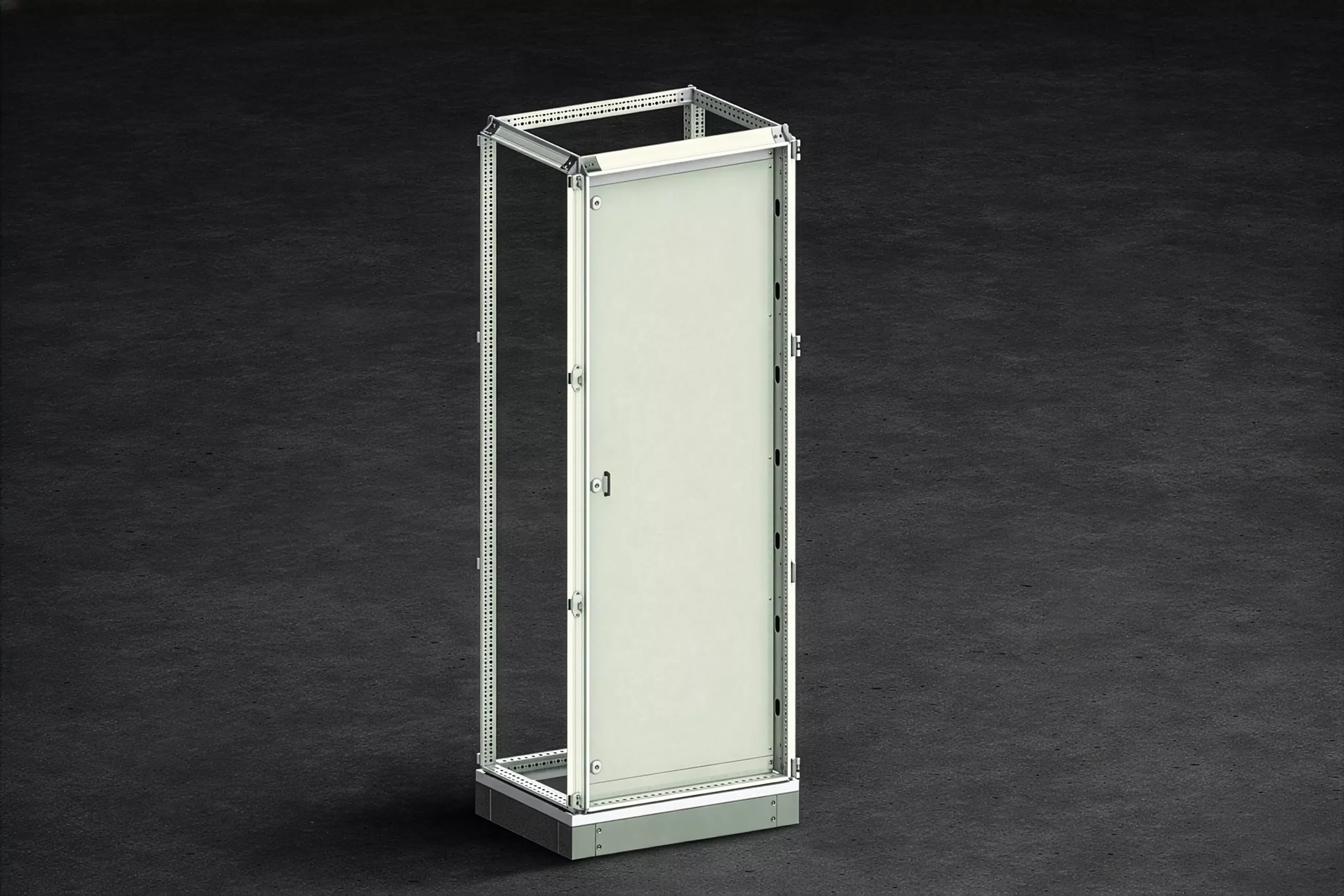

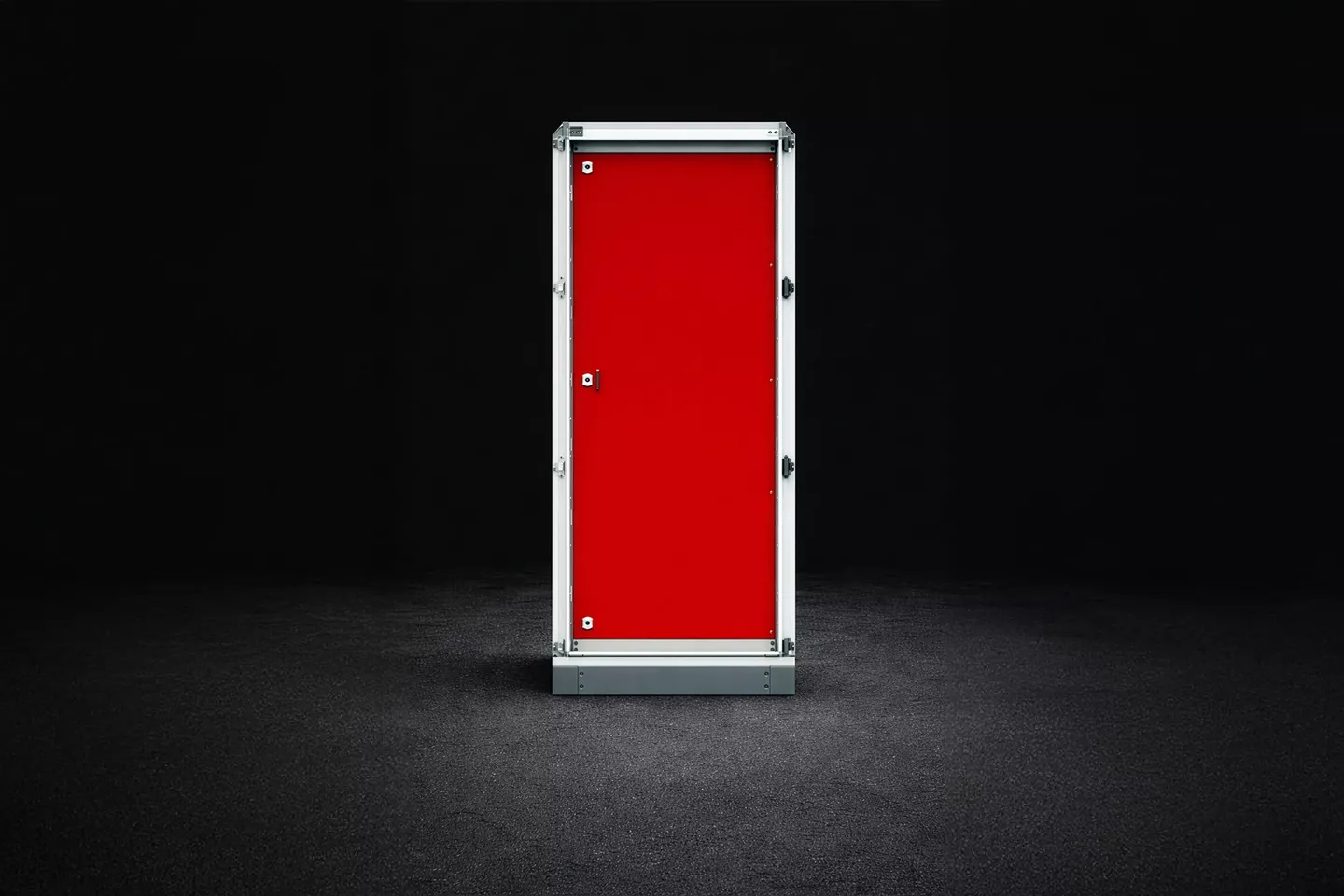

Hinged and lockable full plate (swing panel) used to create a full internal front cover inside the enclosure.
Suitable for mounting panel-type devices on its surface.
Provides IP3XC protection according to IEC EN 60529.
Complies with IEC 62208 standards.
Related Dimensions:
Enclosure Height (H) and Width (W)
Material:
DC01 sheet steel
Surface Finish:
Nano-coating pre-treatment with RAL 7035 powder coating
Supply Includes:
1 full plate, hinges, quarter-turn locks, and handle.
Required:
For installation inside the enclosure, 1 Cover Plate Frameset matching the enclosure heigth and width is required.
| | | | Product Code | Height(H) | Width (W) |
|---|
| 2D DXF | 3D STEP | 713.420 | 2000mm (78.7") | 400mm (15.7") |
| 2D DXF | 3D STEP | 713.620 | 2000mm (78.7") | 600mm (23.6") |
| 2D DXF | 3D STEP | 713.820 | 2000mm (78.7") | 800mm (31.5") |
