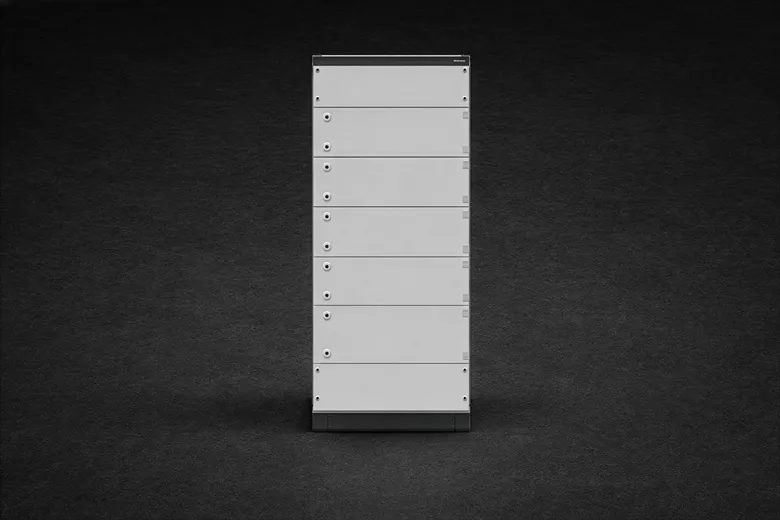

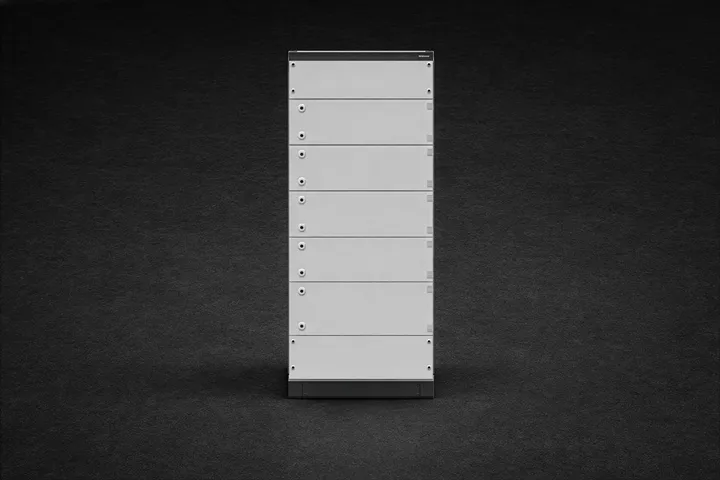

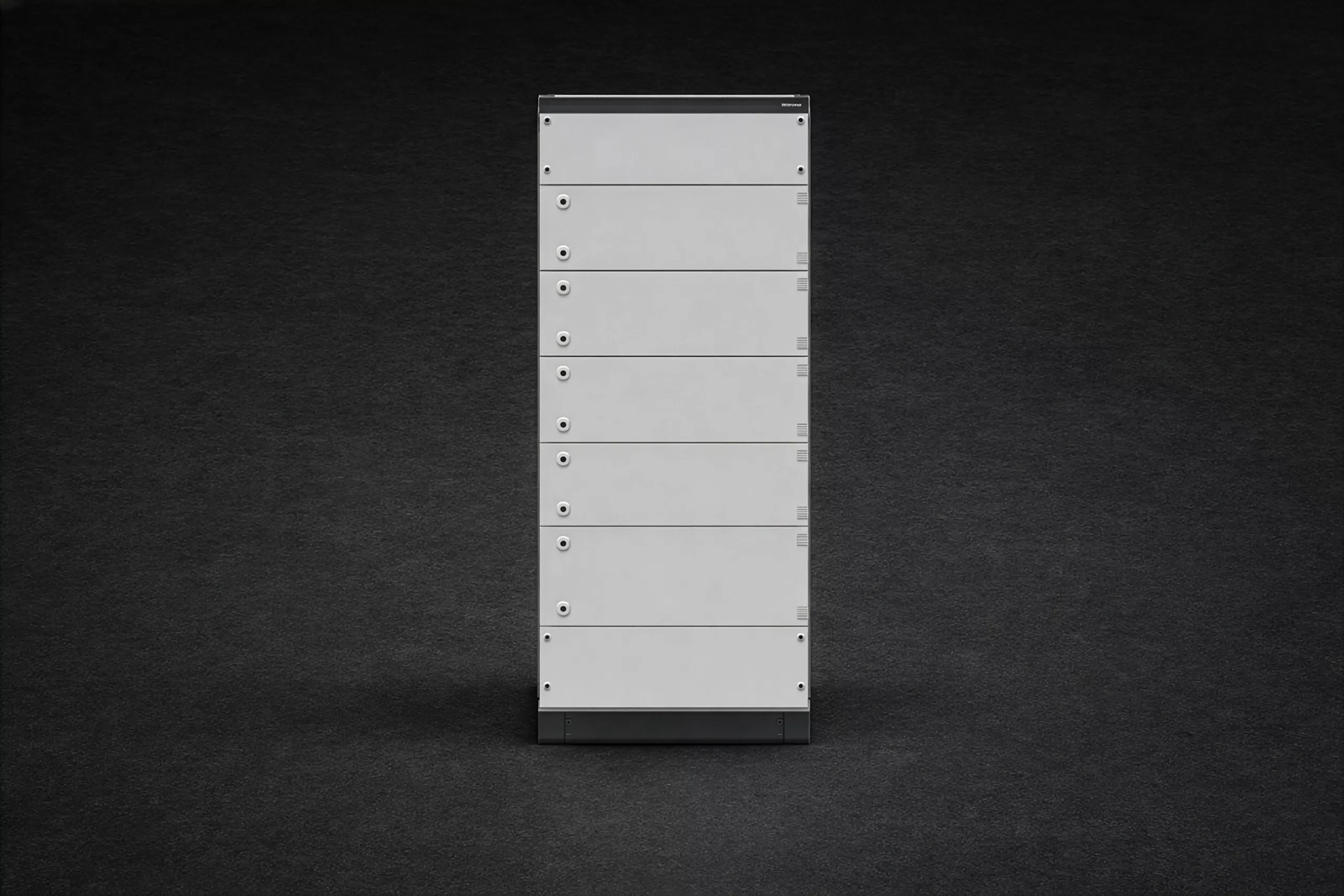

Partial Fixed Top & Bottom Cover

Compatibility:
TEOS Modular enclosures

Description:
Used in applications where the front door of the enclosure is designed as seperated hinged sections.
Intended to close the top or bottom end section of the enclosure using a fixed mounting configuration.
Available in 100 mm or 200 mm height options.
When selecting the height option, the nominal mountable height of the enclosure must be taken into consideration.
Complies with IEC 62208 and UL 508A standards.
Provides IP54 protection according to IEC EN 60529 / NEMA 12 protection and IK10 impact protection.
Corrosion resistance level C3-M according to EN ISO 12944-2.

Related Dimensions:
Enclosure Width (W) and Cover Height

Material:
DC01 sheet steel

Surface Finish:
Nano-coating pre-treatment with RAL 7035 powder coating

Supply Includes:
-

Top Fixed Panel:

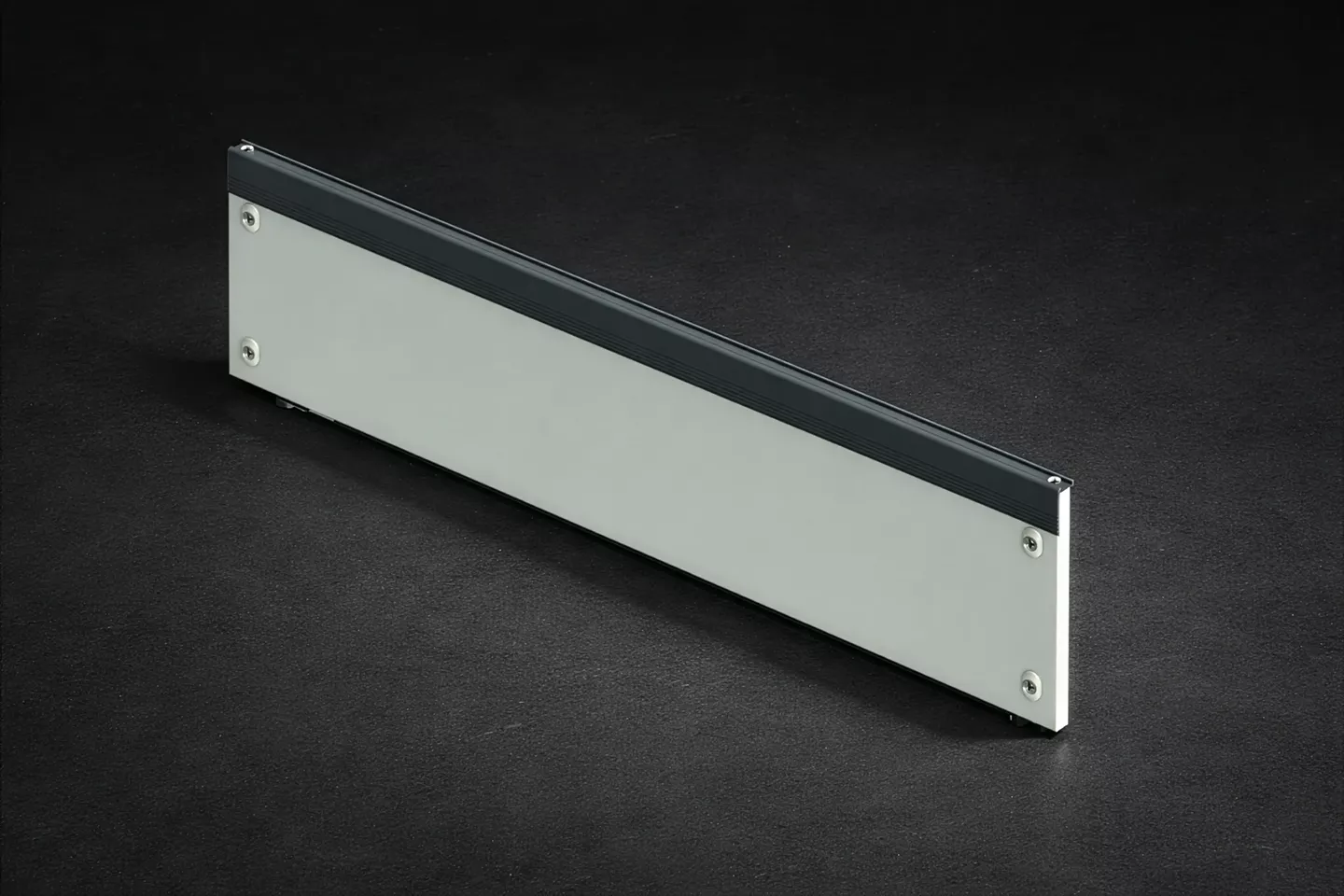

1 cover, 1 grey aluminum profile, 1 door divider profile, and connection accessories

Bottom Fixed Panel:

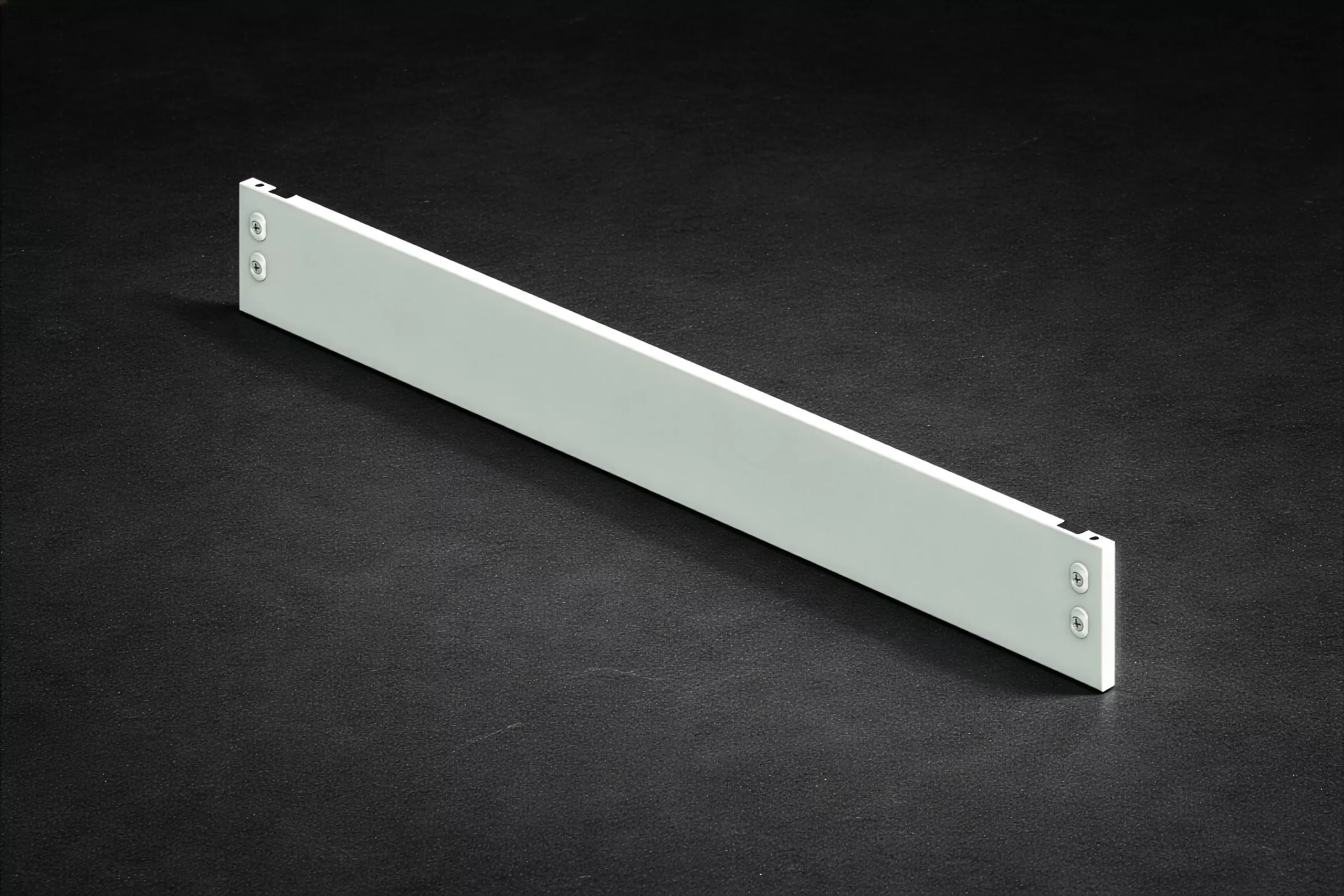

1 cover and connection accessories

Note:
When selecting the height option, the nominal mountable height of the enclosure must be taken into consideration.
Nominal Enclosure Mounting Height = Enclosure Height (H) – 100 mm(3.94")
