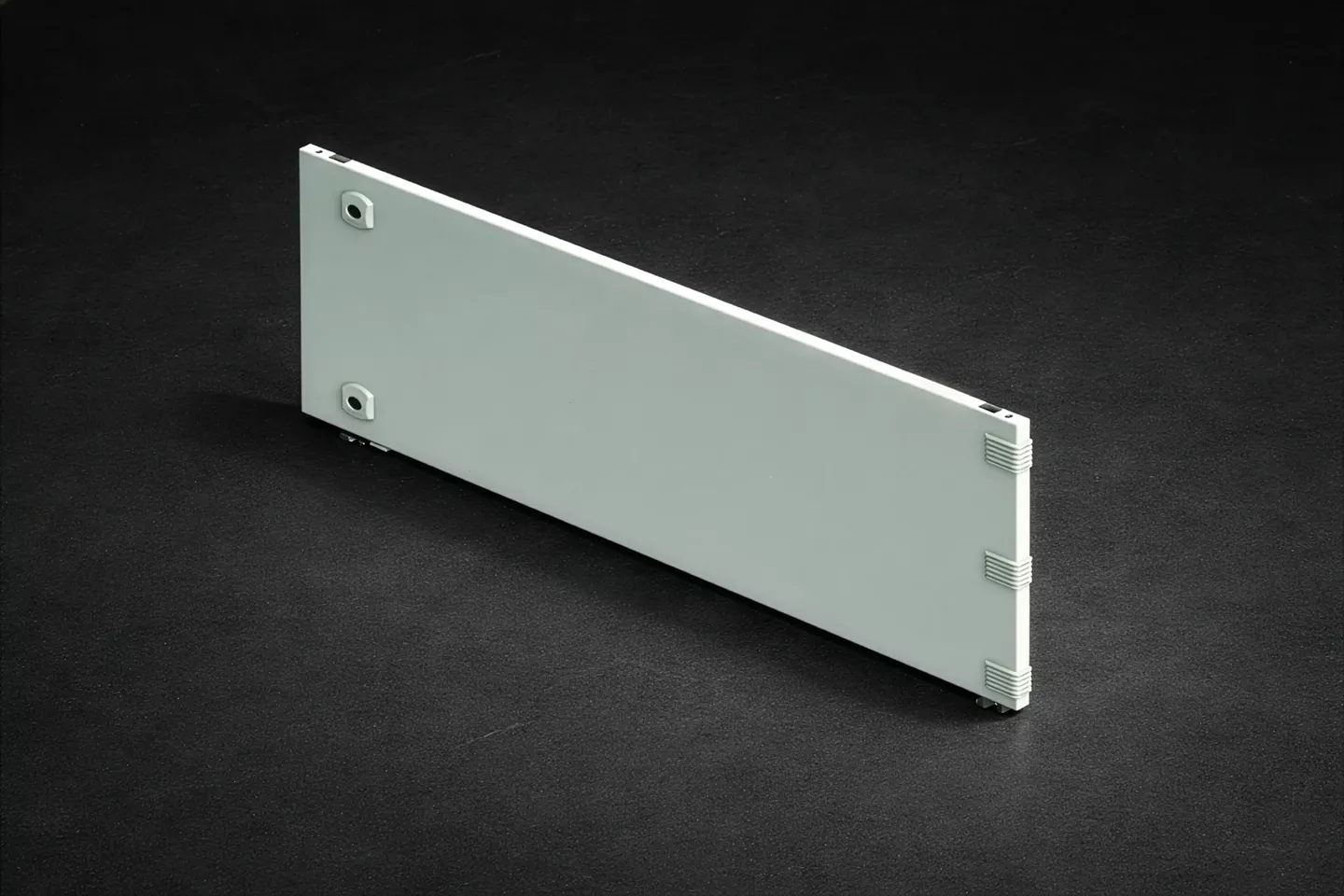

Partial Doors

Compatibility:
TEOS Modular enclosures

Description:

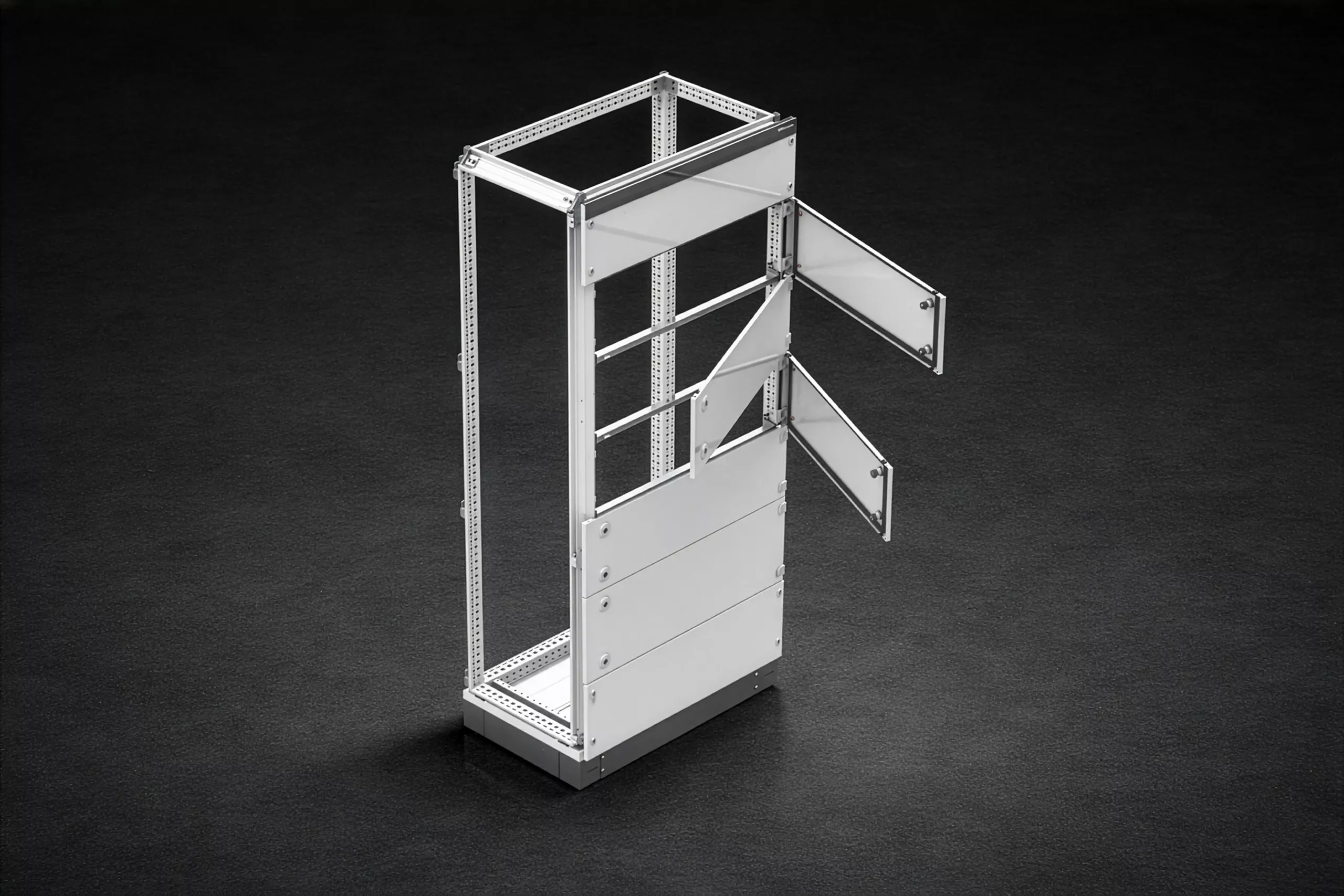

Used in applications where the enclosure front door is designed as saperated hinged sections.Intended for creating hinged partial door sections in the middle areas of the enclosure.
Provides 180° door opening capability.
When selecting the height option, the nominal mountable height of the enclosure must be taken into consideration.
Complies with IEC 62208 and UL 508A standards.
Provides IP54 protection according to IEC EN 60529 / NEMA 12 protection and IK10 impact protection.
Corrosion resistance level C3-M according to EN ISO 12944-2.

Related Dimensions:
Enclosure Width (W) and Door Height

Material:
DC01 sheet steel

Surface Finish:
Nano-coating pre-treatment with RAL 7035 powder coating

Supply Includes:
1 hinged partial door, 1 divider profile, locks, and connection accessories.

Required:
For the installation of the hinged partial door, 1 Top Fixed Partial Cover and 1 Bottom Fixed Partial Cover are required.

Note:
When selecting the height option, the nominal mountable height of the enclosure must be taken into consideration.
Nominal Enclosure Mounting Height = Enclosure Height (H) – 100 mm (3.94")
