Compatibility:
Suitable for NEO Modular, NEO HC Outdoor Modular Enclosure
Description:
Complies with IEC 62208 and UL 50E standards
IP protection up to IP55 according to IEC EN 60529 / NEMA 3R protection
Corrosion resistance level C3-M according to EN ISO 12944-2
IK10 impact protection
Related Dimensions:
Enclosure Width (W) and Depth (D)
Material:
DX51 galvanized sheet steel
Surface Finish:
Nano coating with RAL 7035 powder coating
Supply Includes:
Rain canopy and assembly parts
Description:

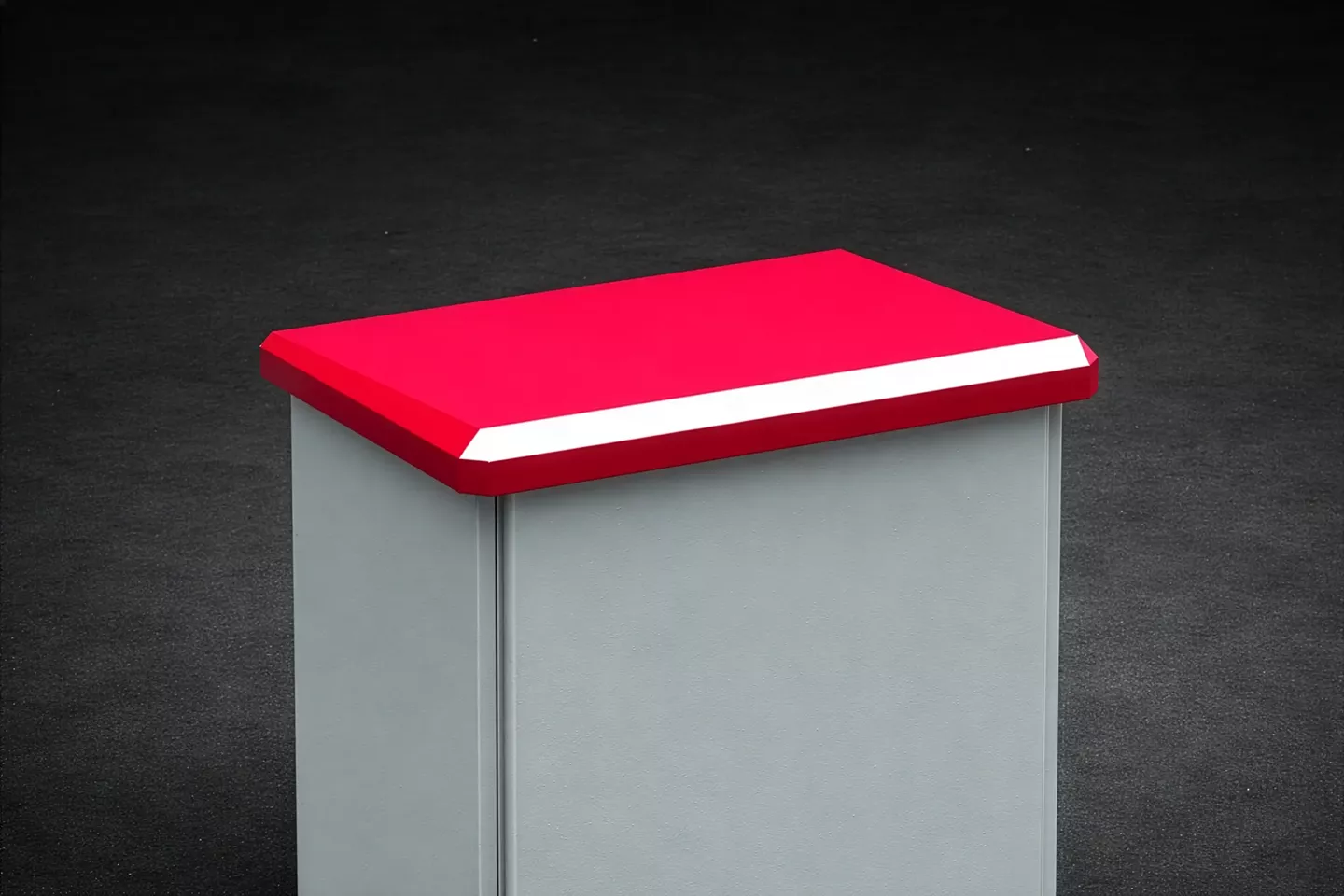

For a single enclosure installation, select 1 pc “Single Module” canopy.
For two enclosures joined side by side, select 1 pc “Left Module” and 1 pc “Right Module” canopy.

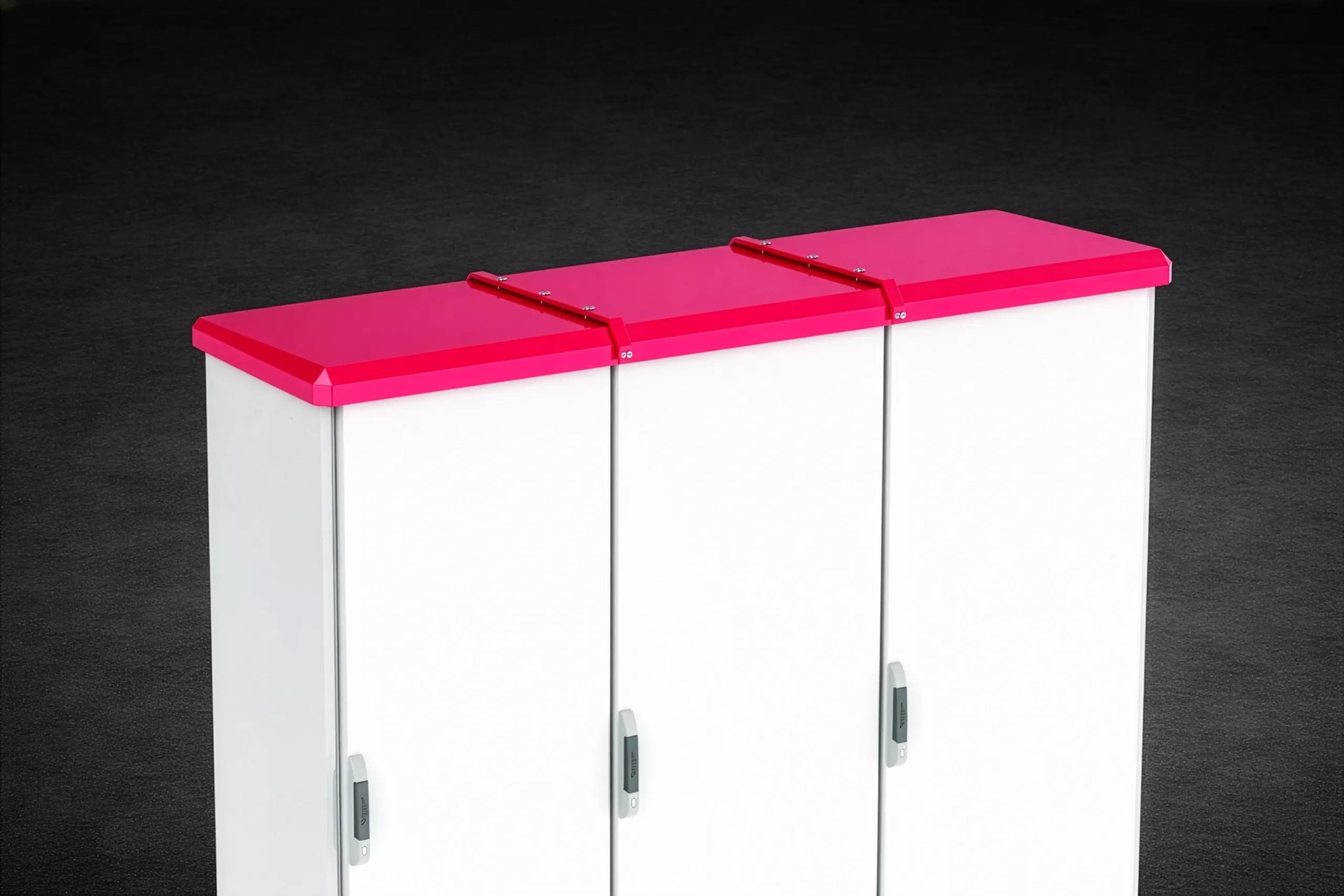

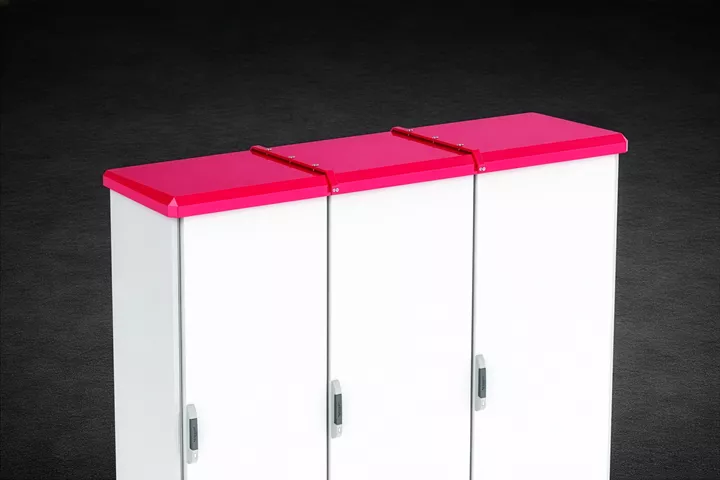

For three or more enclosures joined side by side, select 1 pc “Left Module”, 1 pc “Right Module”, and “Middle Module” canopies for the intermediate enclosures
Installation Requirement:
For outdoor applications with an Outdoor Rain Canopy, the use of NEO Outdoor Side Walls is mandatory to ensure proper environmental protection and system integrity.
| | | | Product Code | Width (W) | Depth (D) | Module Type |
|---|
| 2D DXF | 3D STEP | 934.266 | 600mm (23.6") | 600mm (23.6") | Single |
| 2D DXF | 3D STEP | 934.286 | 800mm (31.5") | 600mm (23.6") | Single |
| 2D DXF | 3D STEP | 934.366 | 600mm (23.6") | 600mm (23.6") | Left |
| 2D DXF | 3D STEP | 934.386 | 800mm (31.5") | 600mm (23.6") | Left |
| 2D DXF | 3D STEP | 934.466 | 600mm (23.6") | 600mm (23.6") | Right |
| 2D DXF | 3D STEP | 934.486 | 800mm (31.5") | 600mm (23.6") | Right |
| 2D DXF | 3D STEP | 934.566 | 600mm (23.6") | 600mm (23.6") | Middle |
| 2D DXF | 3D STEP | 934.586 | 800mm (31.5") | 600mm (23.6") | Middle |
