Compatibility:
All TEOS and NEO enclosures
Description:

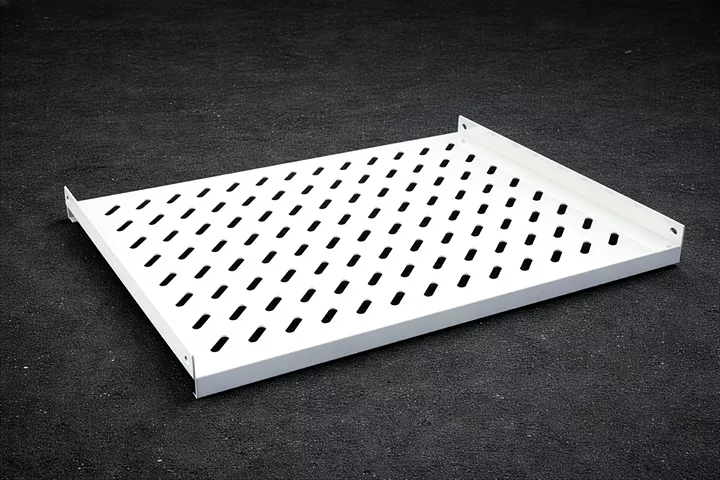

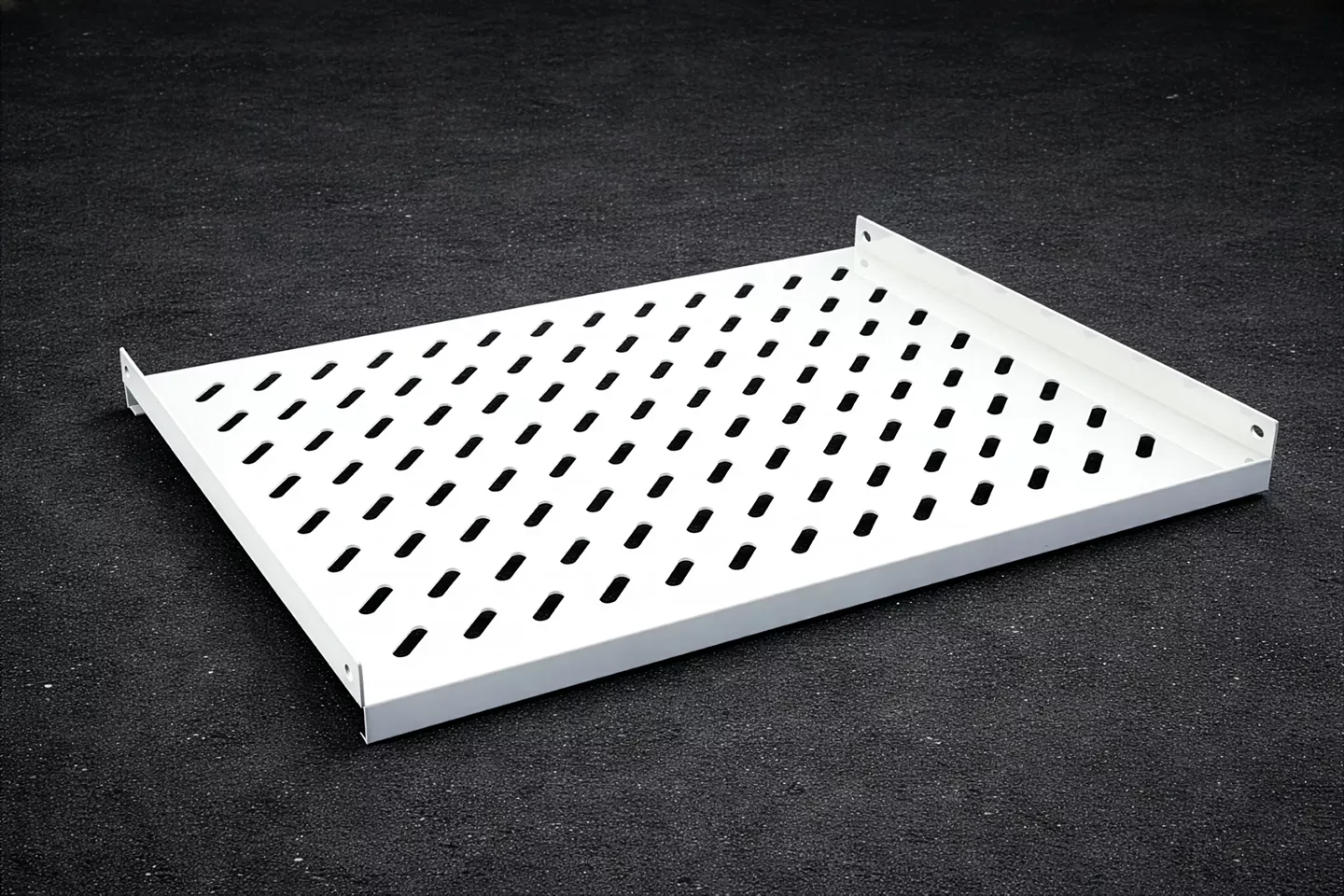

Used to create an internal shelf inside the enclosure.
Complies with IEC 62208 standards.
Related Dimensions:
Enclosure Width (W) and Depth (D)
Material:
DC01 sheet steel
Surface Finish:
Nano-coating pre-treatment with RAL 7035 powder coating
Supply Includes:
1 fixed shelf and fixing bolts
Required:

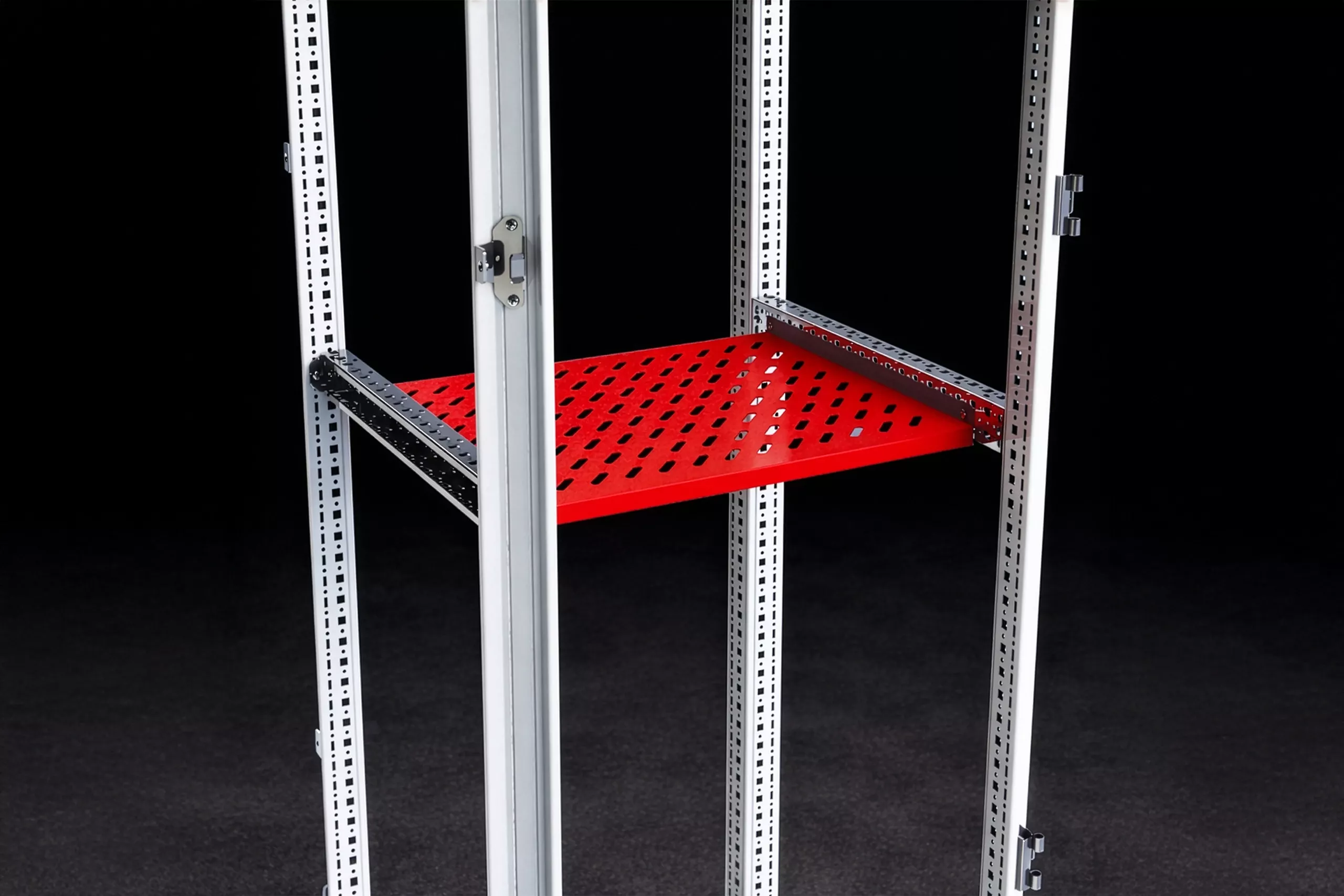

For installation inside the enclosure, 2 pieces of 50x25 mm mounting rails matching the enclosure depth are required.
| | | | Product Code | Width (W) | Depth (D) |
|---|
| 2D DXF | 3D STEP | 945.200 | 600mm (23.6") | 600mm (23.6") |
| 2D DXF | 3D STEP | 945.201 | 600mm (23.6") | 800mm (31.5") |
| 2D DXF | 3D STEP | 945.202 | 800mm (31.5") | 600mm (23.6") |
| 2D DXF | 3D STEP | 945.203 | 800mm (31.5") | 800mm (31.5") |
