- Wall-Mount / Freestanding with Plinth – Indoor / Outdoor Option (a)
- Single Door, Mounting panel included
- Standards Compliance: UL 50E and IEC 62208
- Protection Ratings: UL/cUL Type 1, 3R, 12, 4, 4x - UL File Number E352599 / IP66 (IEC 60 529)
- Impact Protection: IK10 according to IEC EN 60529
- Door Types:

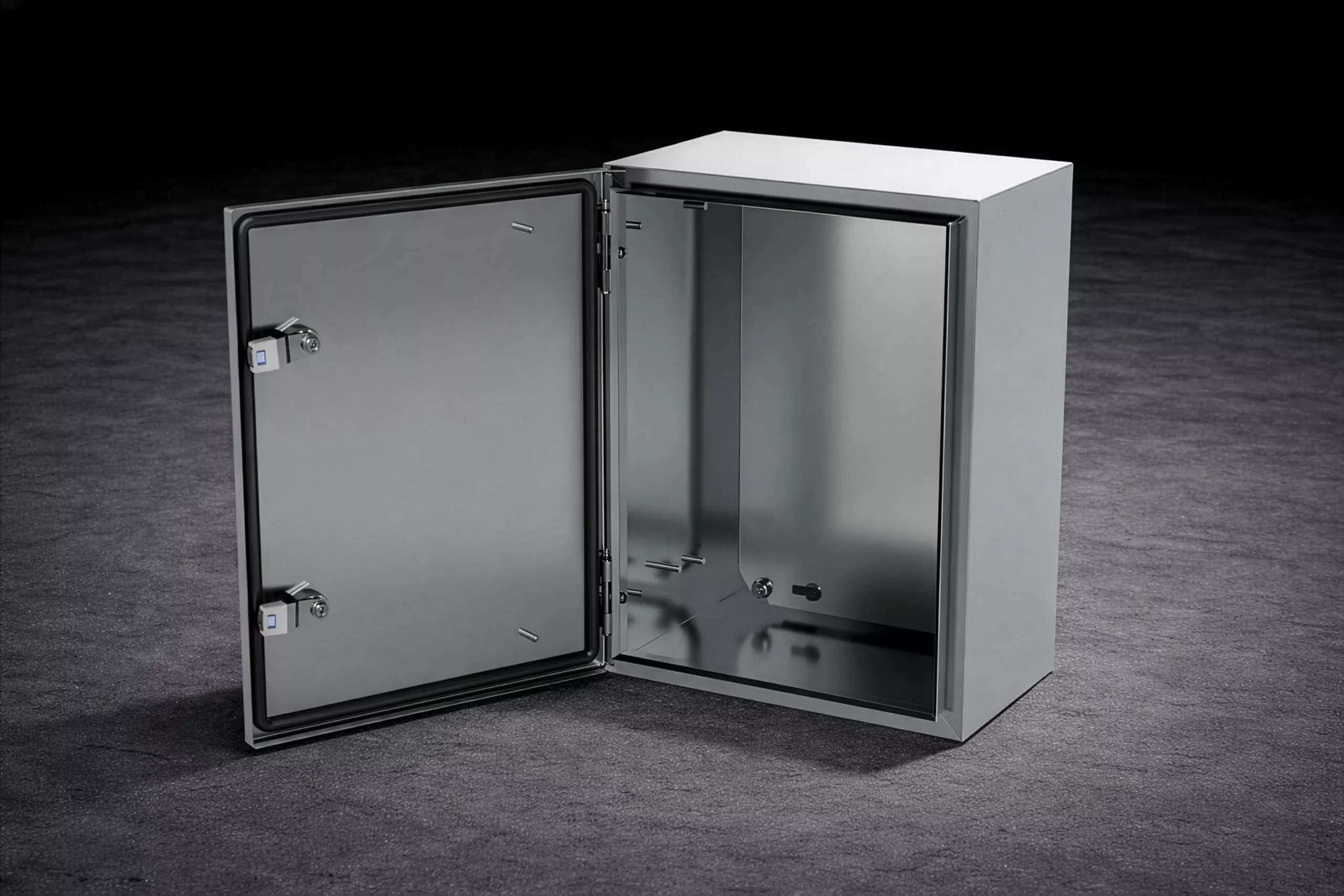

-130° left hand hinged door (reverse is possible), one 1/4 turn latch with screwdriver insert (Door Type A)

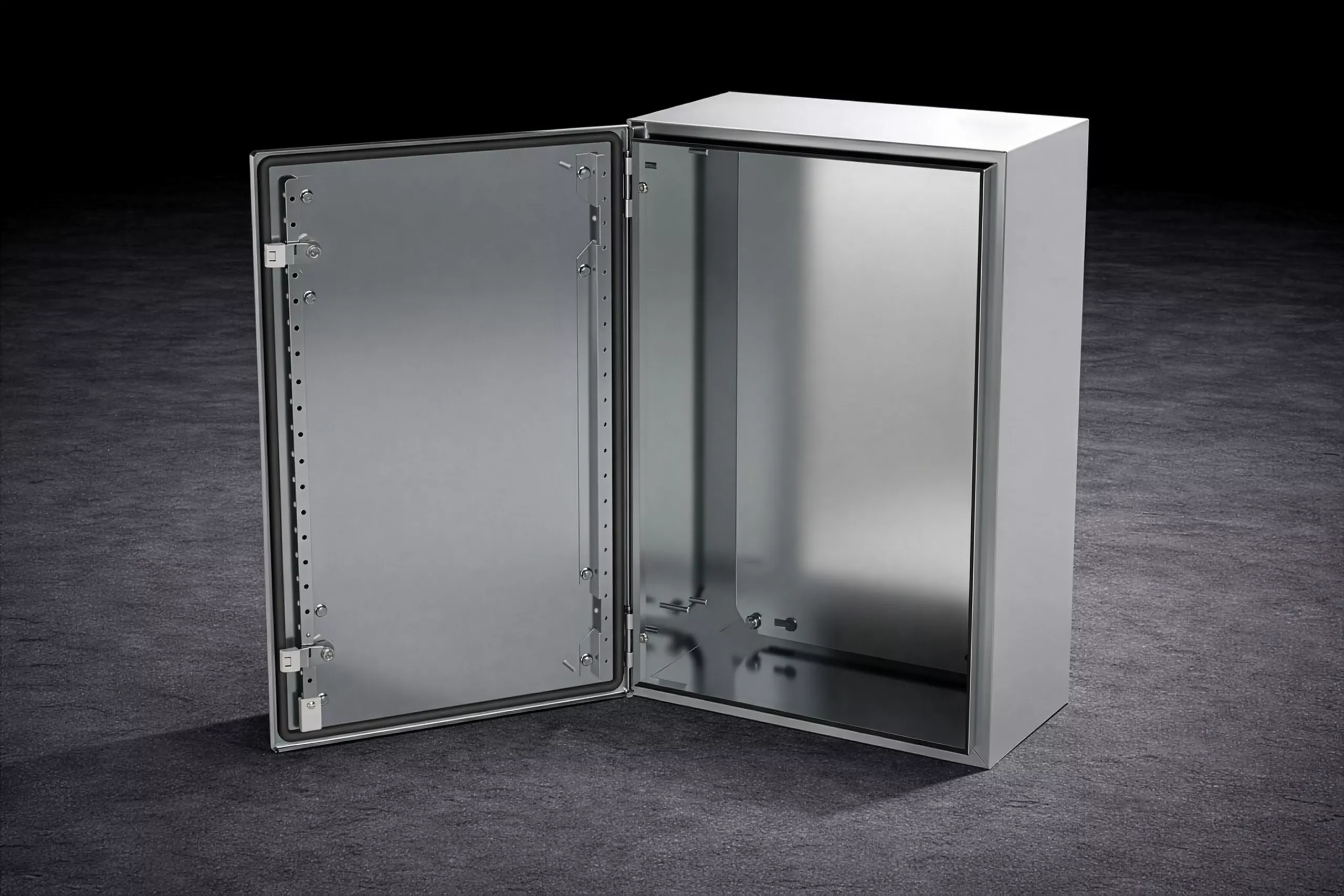

-130° left hand hinged door (reverse is possible), two 1/4 turn latches with screwdriver insert (Door Type B , C)

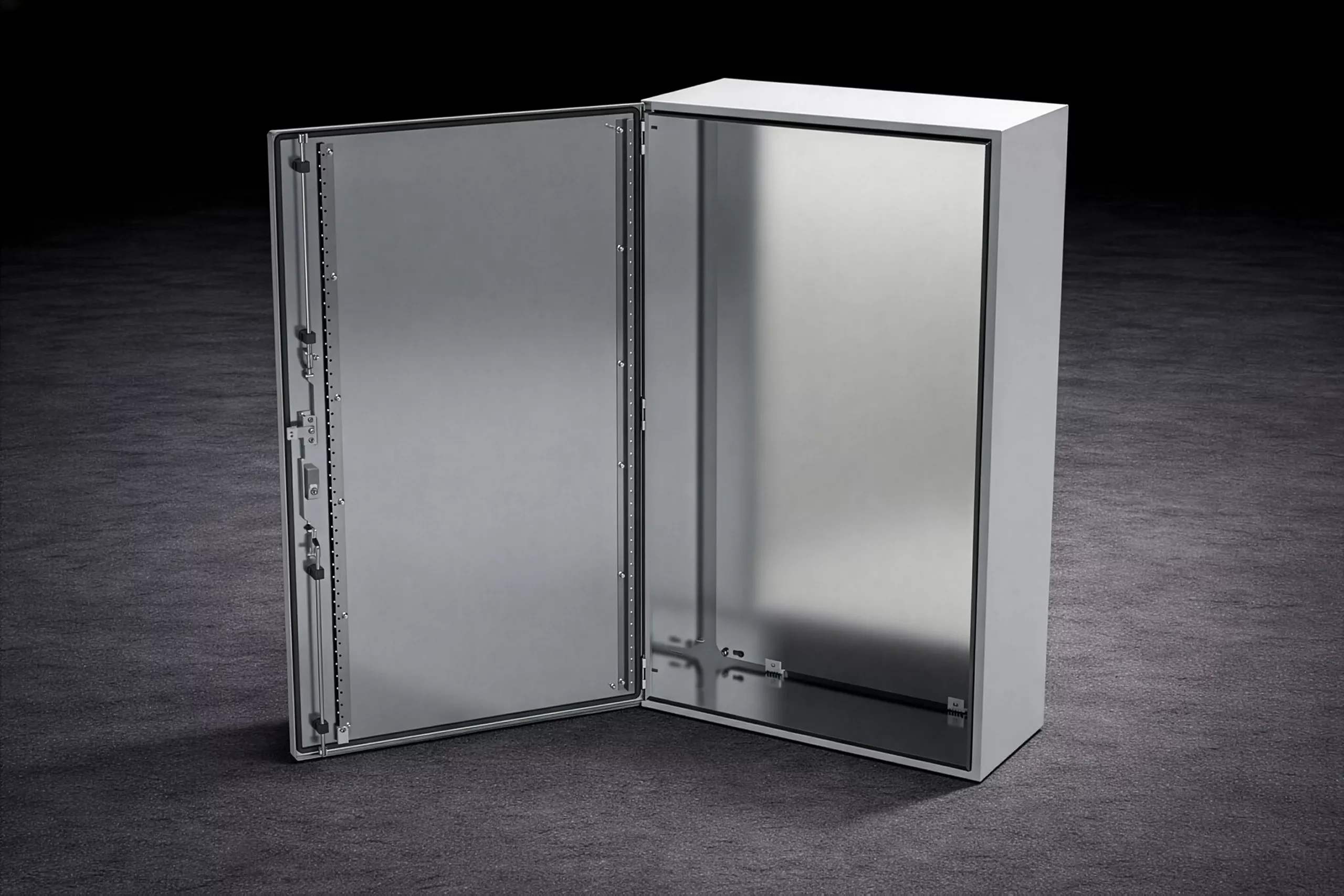

-130° left hand hinged door (reverse is possible), 3-point latching tool-to-open swing handle with screwdriver insert (Door Type D)
Materials:
Enclosure, Door: AISI 316L Stainless Steel
Lock(s): Body and insert AISI 316
Mounting Panel: DX51 Galvanized Steel
Surface Finish:
Body, Door: Brushed finish
Supply Includes:
Enclosure, Door, Mounting Panel
Options:
Wall brackets, grounding cables, and other accessories
(a): For outdoor applications, an Outdoor Canopy is required.

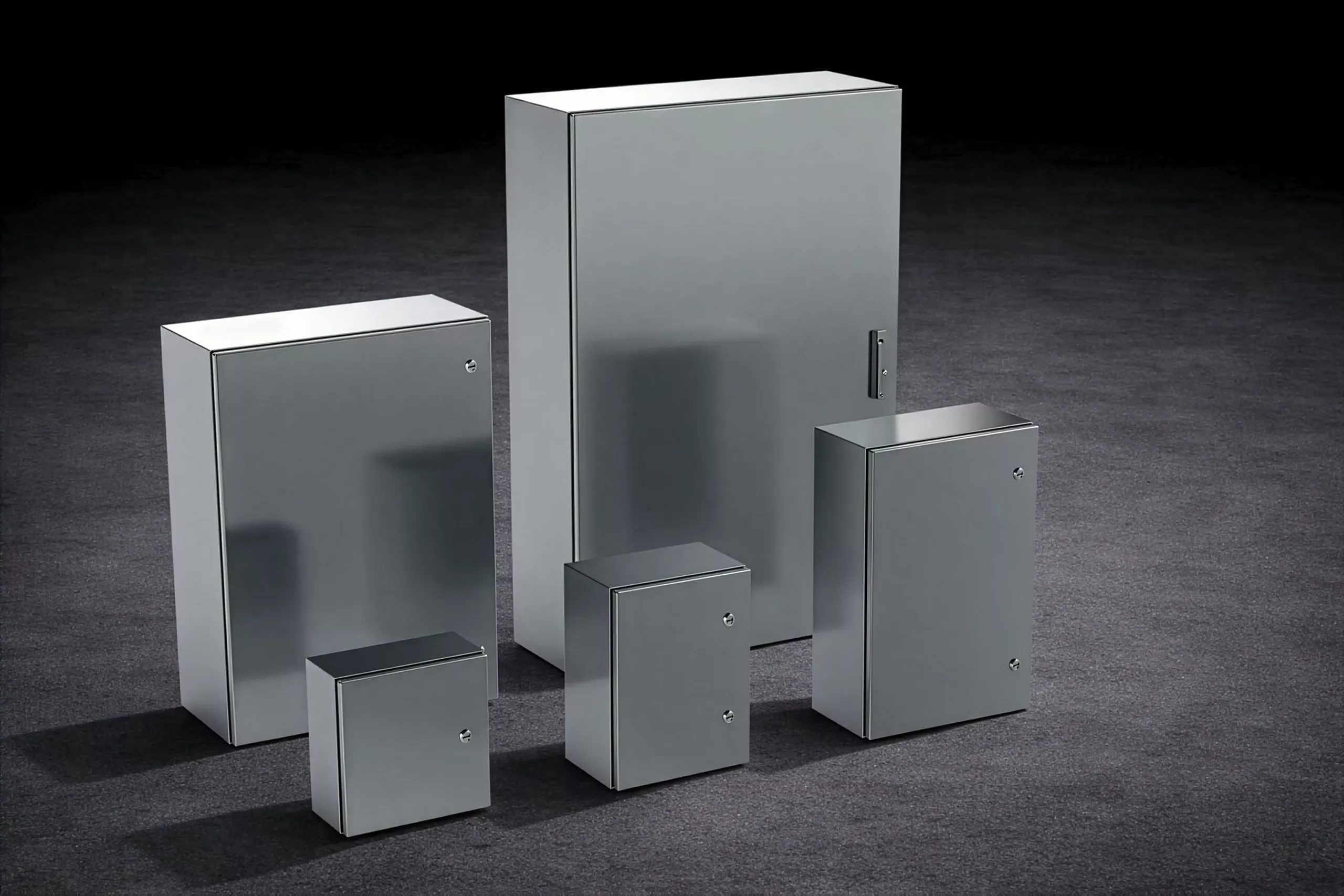

| | | | Product Code | Height(H) | Width (W) | Depth (D) | Door Type |
|---|
| 2D DXF | 3D STEP | DM U252.315-SS6 | 300mm (11.8") | 250mm (9.8") | 150mm (5.91") | A |
| 2D DXF | 3D STEP | DM U253.421-SS6 | 400mm (15.7") | 300mm (11.8") | 210mm (8.3") | B |
| 2D DXF | 3D STEP | DM U254.421-SS6 | 400mm (15.7") | 400mm (15.7") | 210mm (8.3") | B |
| 2D DXF | 3D STEP | DM U254.621-SS6 | 600mm (23.6") | 400mm (15.7") | 210mm (8.3") | B |
| 2D DXF | 3D STEP | DM U255.726-SS6 | 700mm (27.6") | 500mm (19.7") | 260mm (10.2") | B |
| 2D DXF | 3D STEP | DM U256.830-SS6 | 800mm (31.5") | 600mm (23.6") | 300mm (11.8") | B |
| 2D DXF | 3D STEP | DM U258.123-SS6 | 1200mm (47.2") | 800mm (31.5") | 300mm (11.8") | D |
| 2D DXF | 3D STEP | DM U258.130-SS6 | 1000mm (39.4") | 800mm (31.5") | 300mm (11.8") | C |
| | | | Product Code | Model | Type |
|---|
| 2D DXF | 3D STEP | 951.260 | Insert | 5,00 mm Doublebit |
| 2D DXF | 3D STEP | 951.263 | Insert | Slotted Screw Driver |
| | | | Product Code | Model | Type |
|---|
| 2D DXF | 3D STEP | 951.264 | Insert | Slotted Screw Driver |
| 2D DXF | 3D STEP | 951.360 | Insert | 5,00 mm Doublebit |
| | | | Product Code | Model | Insert |
|---|
| 2D DXF | 3D STEP | 975.020 | Complete Latch | 5,00 mm Doublebit |
| 2D DXF | 3D STEP | 975.022 | Complete Latch | Slotted Screw Driver |
| | | | Product Code | Insert with |
|---|
| 2D DXF | 3D STEP | 975.100 | 5,00 mm Doublebit |
| 2D DXF | 3D STEP | 975.103 | Slotted Screw Driver |
| | | | Product Code | Insert with |
|---|
| 2D DXF | 3D STEP | 975.104 | Slotted Screw Driver |
| 2D DXF | 3D STEP | 975.105 | 5,00 mm Doublebit |
| | | | Product Code | Model |
|---|
| 2D DXF | 3D STEP | 952.101 | 5,00 mm Doublebit |
| | | | Product Code |
|---|
| 2D DXF | 3D STEP | 975.001 |
| | | | Product Code | Height(H) | Width (W) |
|---|
| 2D DXF | 3D STEP | 975.034 | 400 | 300 |
| 2D DXF | 3D STEP | 975.044 | 400 | 400 |
| 2D DXF | 3D STEP | 975.045 | 500 | 400 |
| 2D DXF | 3D STEP | 975.046 | 600 | 400 |
| 2D DXF | 3D STEP | 975.068 | 800 | 600 |
| 2D DXF | 3D STEP | 975.610 | 1000 | 600 |
| 2D DXF | 3D STEP | 975.810 | 1000 | 800 |
| 2D DXF | 3D STEP | 975.812 | 1200 | 800 |
| | | | Product Code | Width (W) |
|---|
| 2D DXF | 3D STEP | 973.442 | 400-500 / 1000 |
| 2D DXF | 3D STEP | 973.542 | 600 / 1200 |
| 2D DXF | 3D STEP | 973.742 | 800 / - |
| | | | Product Code | Model | Cross Section x Length | PU |
|---|
| 2D DXF | 3D STEP | 991.200 | Braided - M6 | 12 x 3 x 163mm (6.42") | 10 |
| 2D DXF | 3D STEP | 991.201 | Braided - M6 | 12 x 3 x 260mm (10.24") | 10 |
| 2D DXF | 3D STEP | 991.208 | Yellow-Green Cable-M8 | 16mm² x 210mm (8.26") | 5 |
| 2D DXF | 3D STEP | 991.209 | Yellow-Green Cable-M8 | 16mm² x 260mm (10.24") | 5 |
| 2D DXF | 3D STEP | 991.210 | Yellow-Green Cable-M8 | 16mm² x 310mm (12.20") | 5 |
