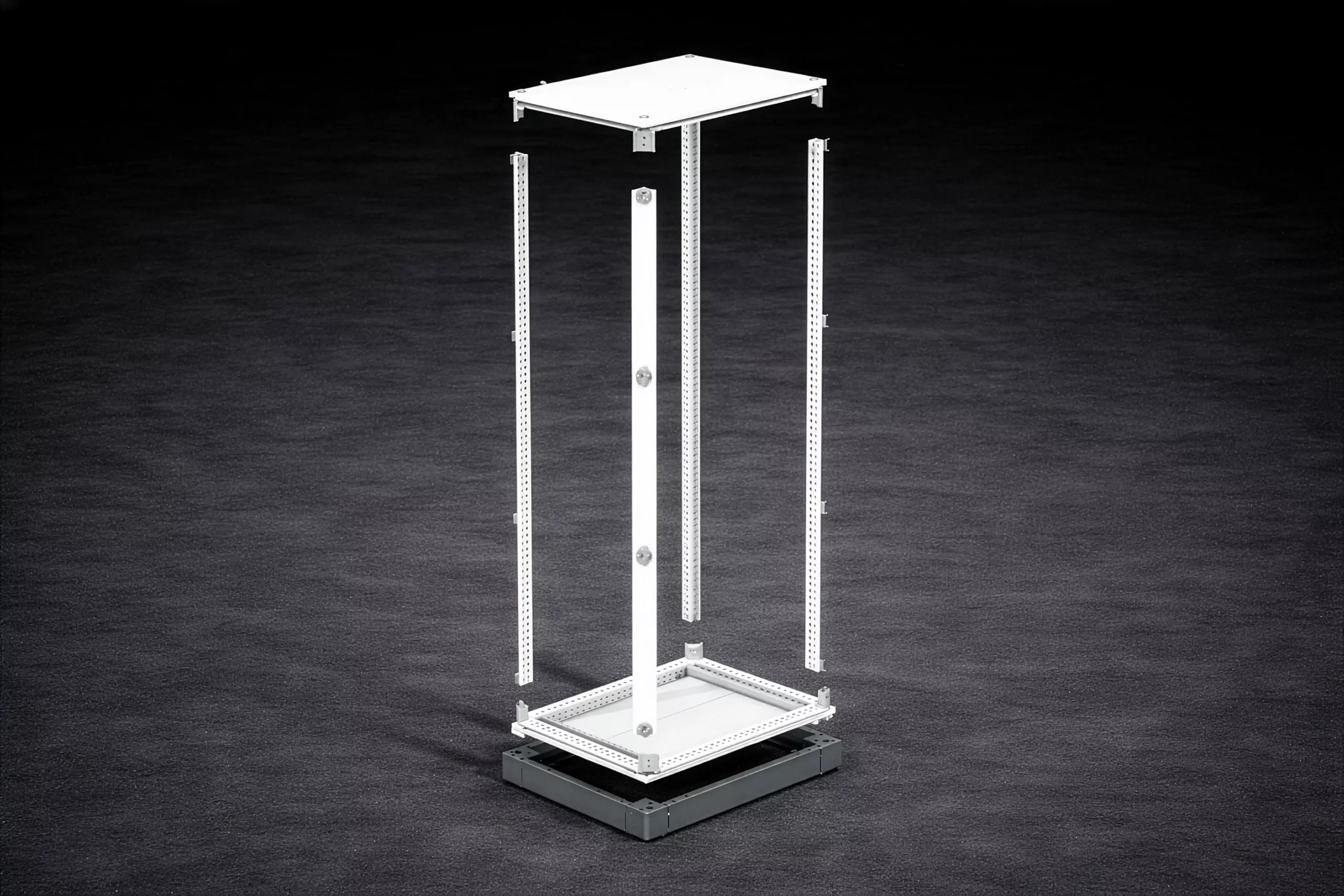

TEOS Flat Pack-Modular Packs Selection

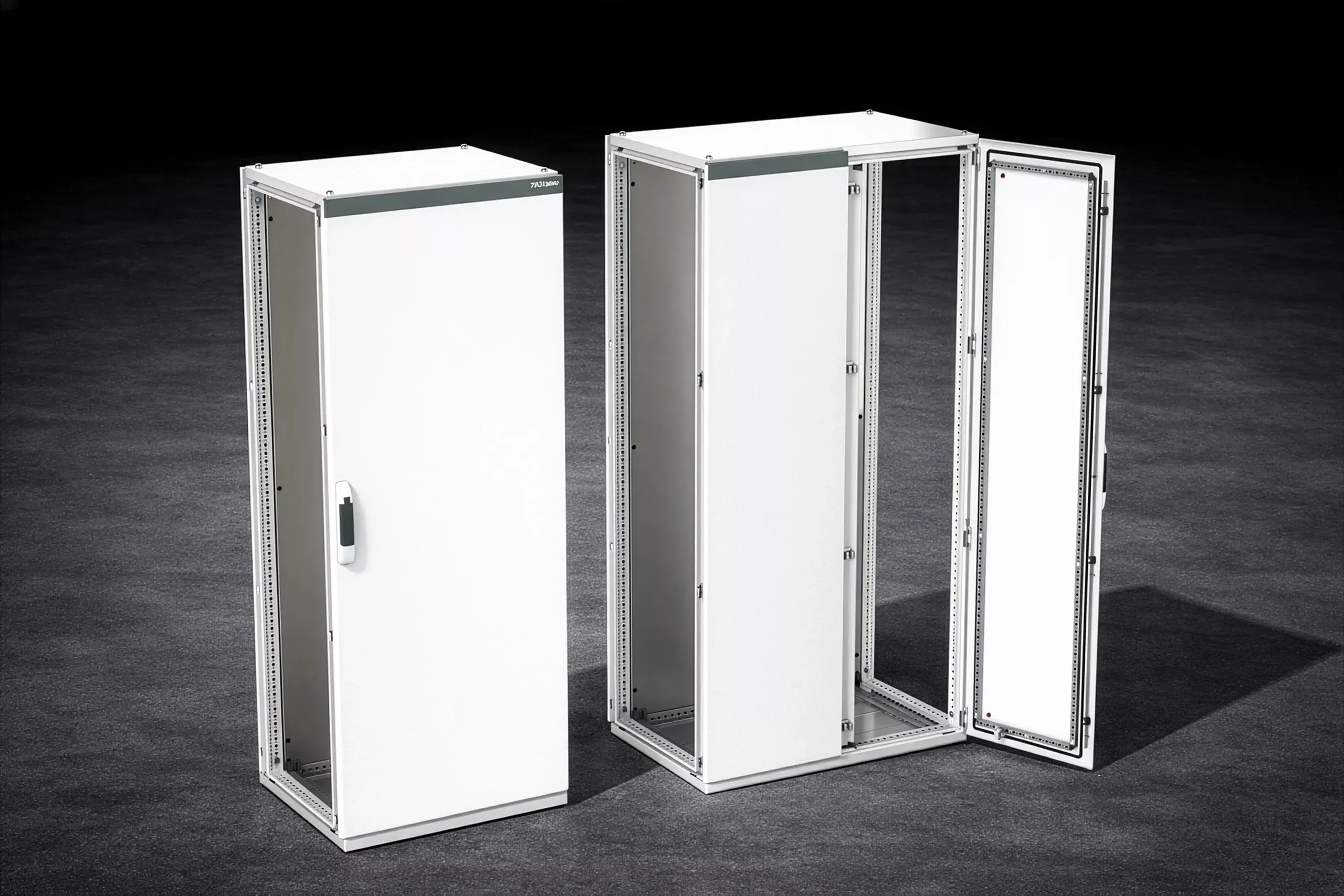

• Floor-Free standing, indoor type, modular enclosures (suitable for side-by-side and back to back combination)
• Single Door, Double Door versions
• Standards Compliance: UL 50E and IEC 62208
• Protection Ratings:
  Single Door: UL/cUL Type 1, 12 - UL File Number E352599 / IP65 (IEC 60 529)
  Double Door: UL/cUL Type 1, 12 - UL File Number E352599 / IP54 (IEC 60 529)
• Corrosion Resistance: C3-M according to EN ISO 12944-2
• Impact Protection: IK10 according to IEC EN 60529

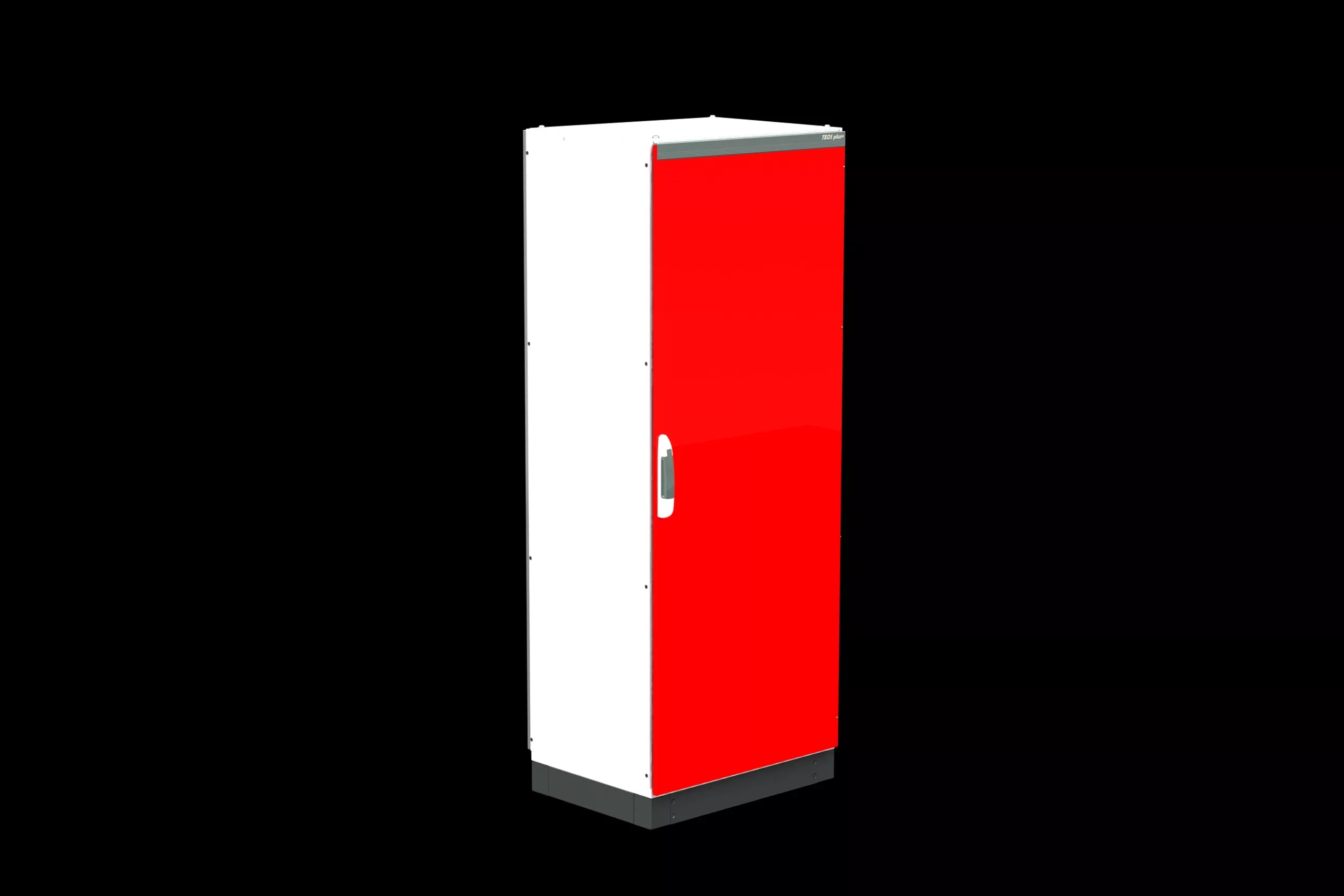

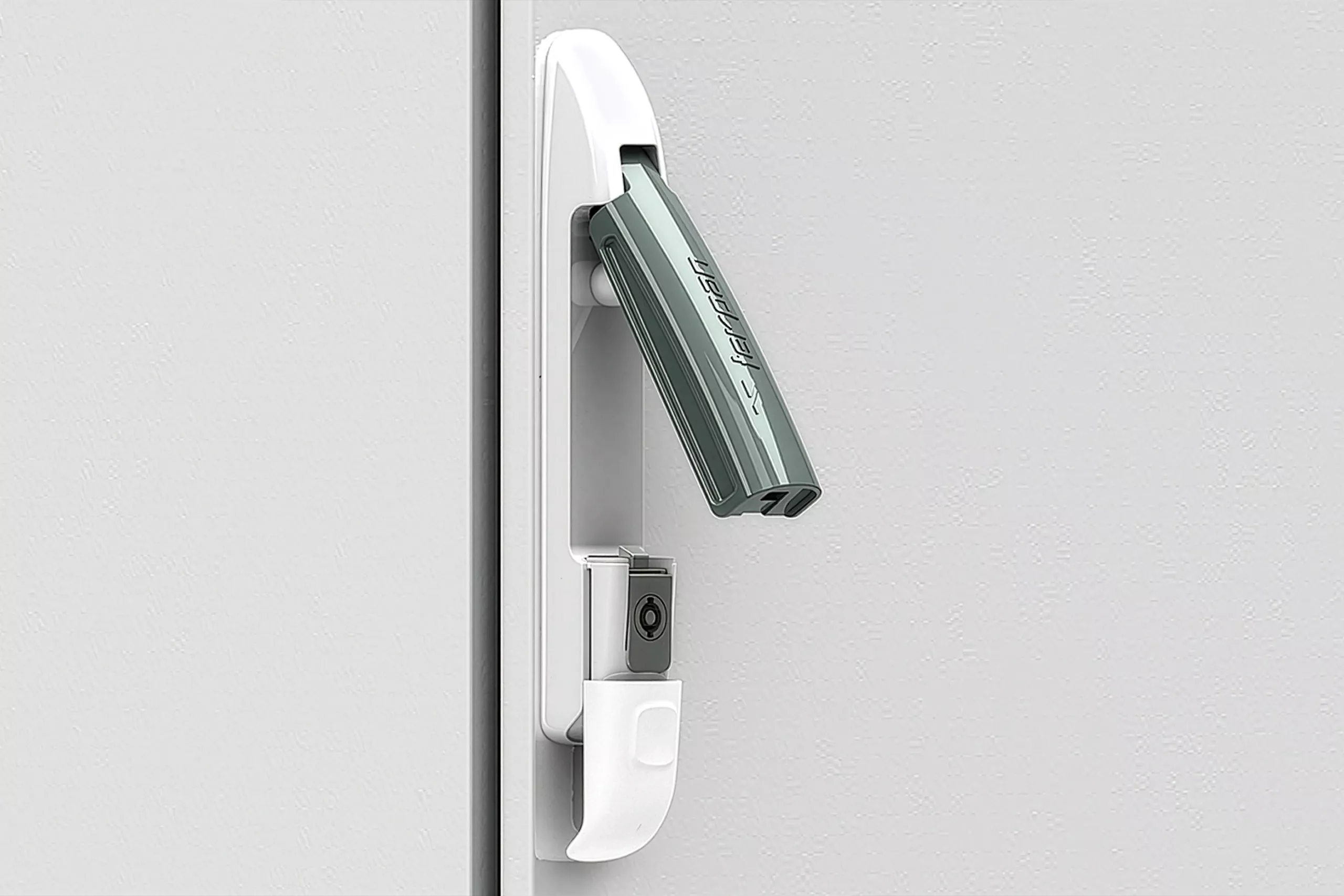

• Single Doors: 130° right hand hinged door (reverse is possible), 4-point latching tool-to-open lineer handle with 5mm double-bit insert

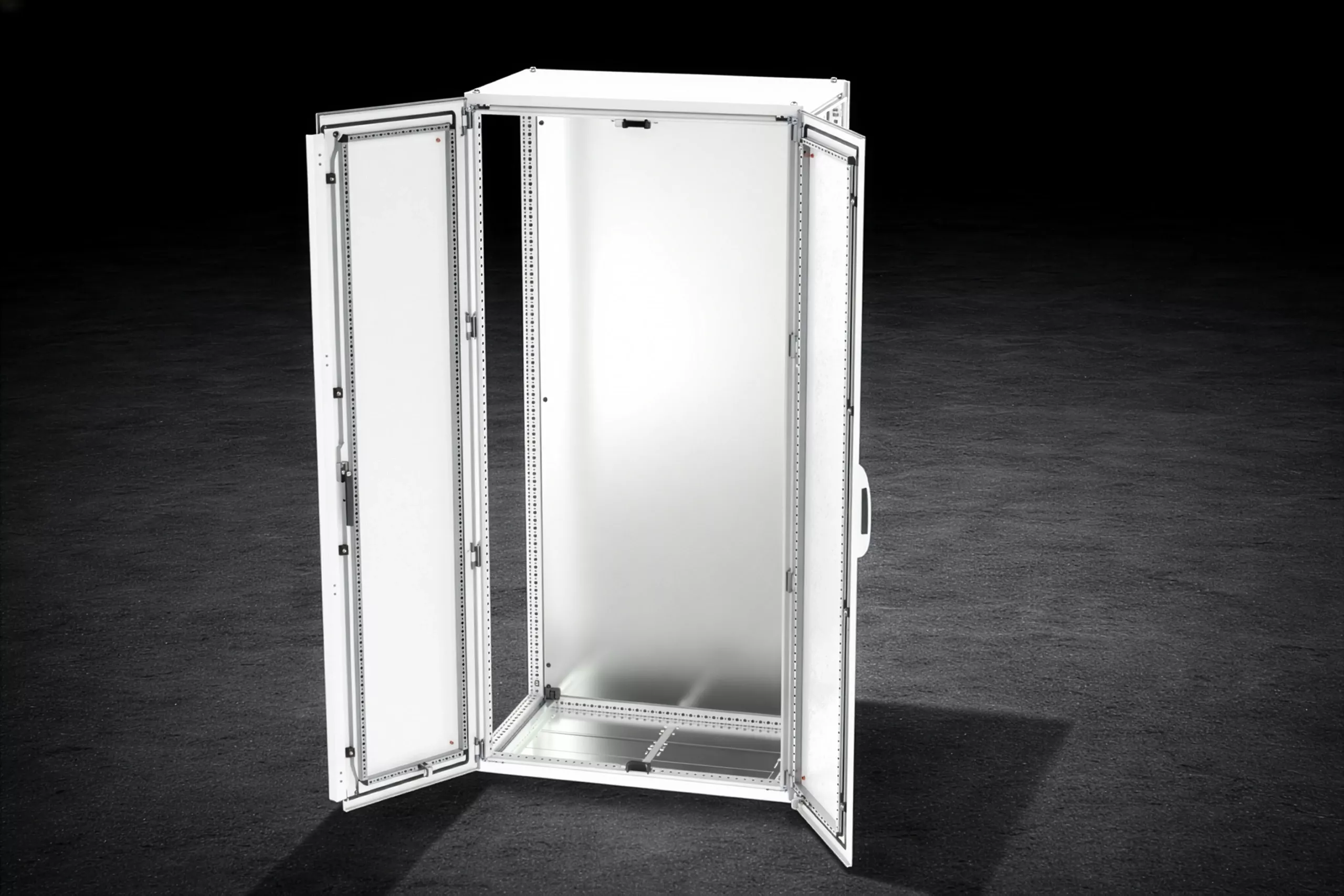

• Double Doors: 130° right hand hinged double doors, 4-point latching tool-to-open lineer handle with 5mm double-bit insert to open right door, 2-point  latching tool with inner handle to open left door

Materials:

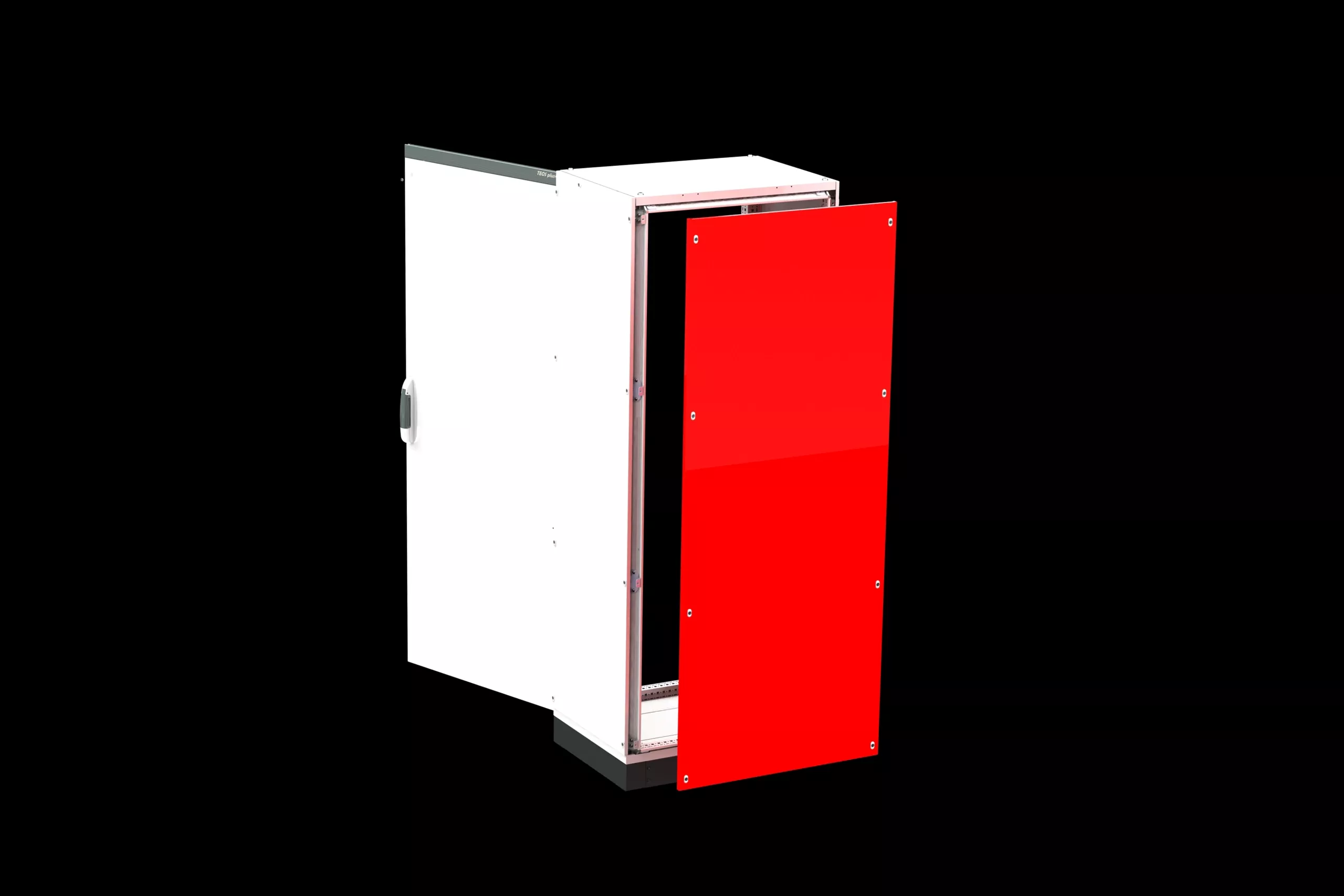

Door(s) 2mm, rear wall and roof 1,5mm: DC-01 Carbon Steel

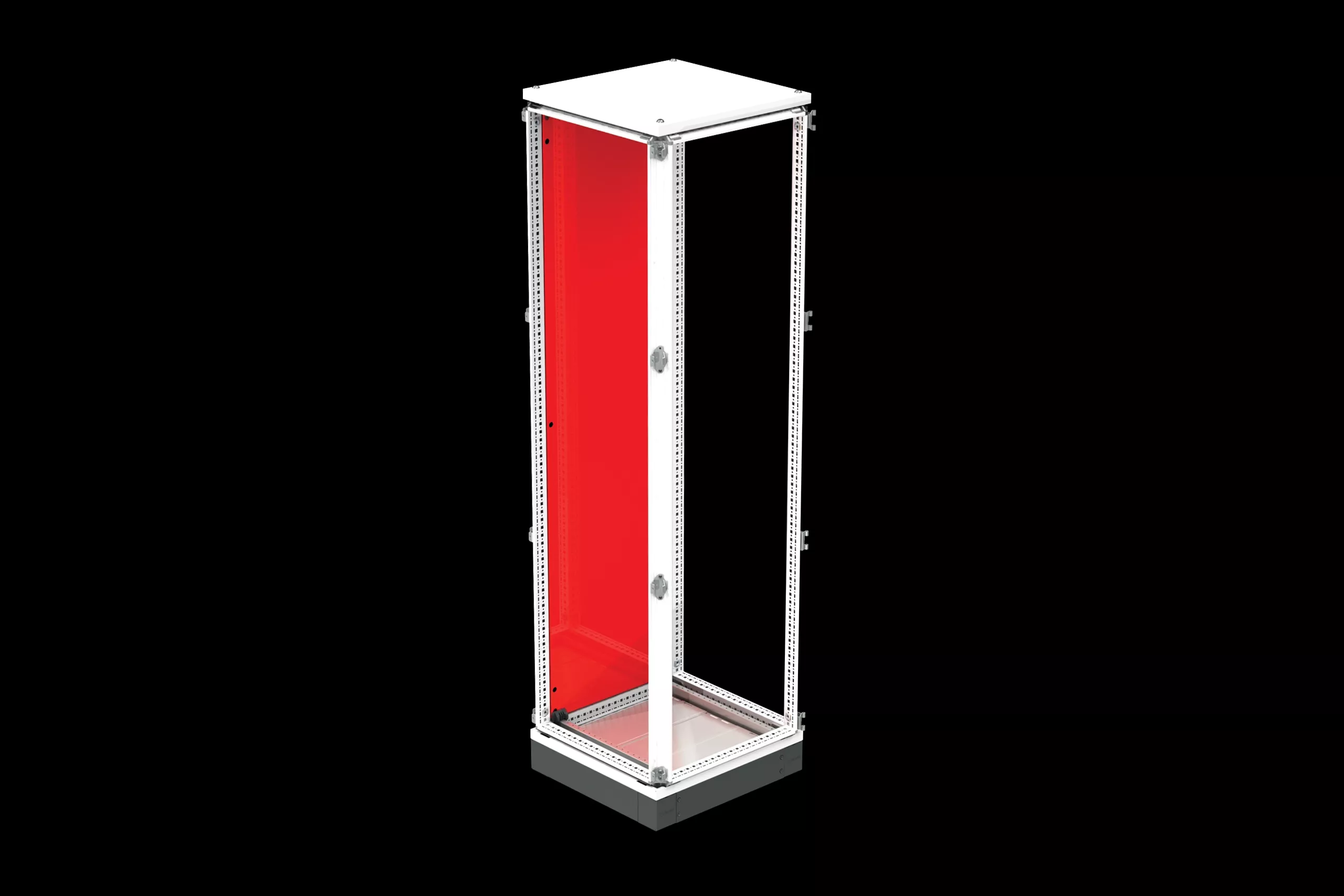

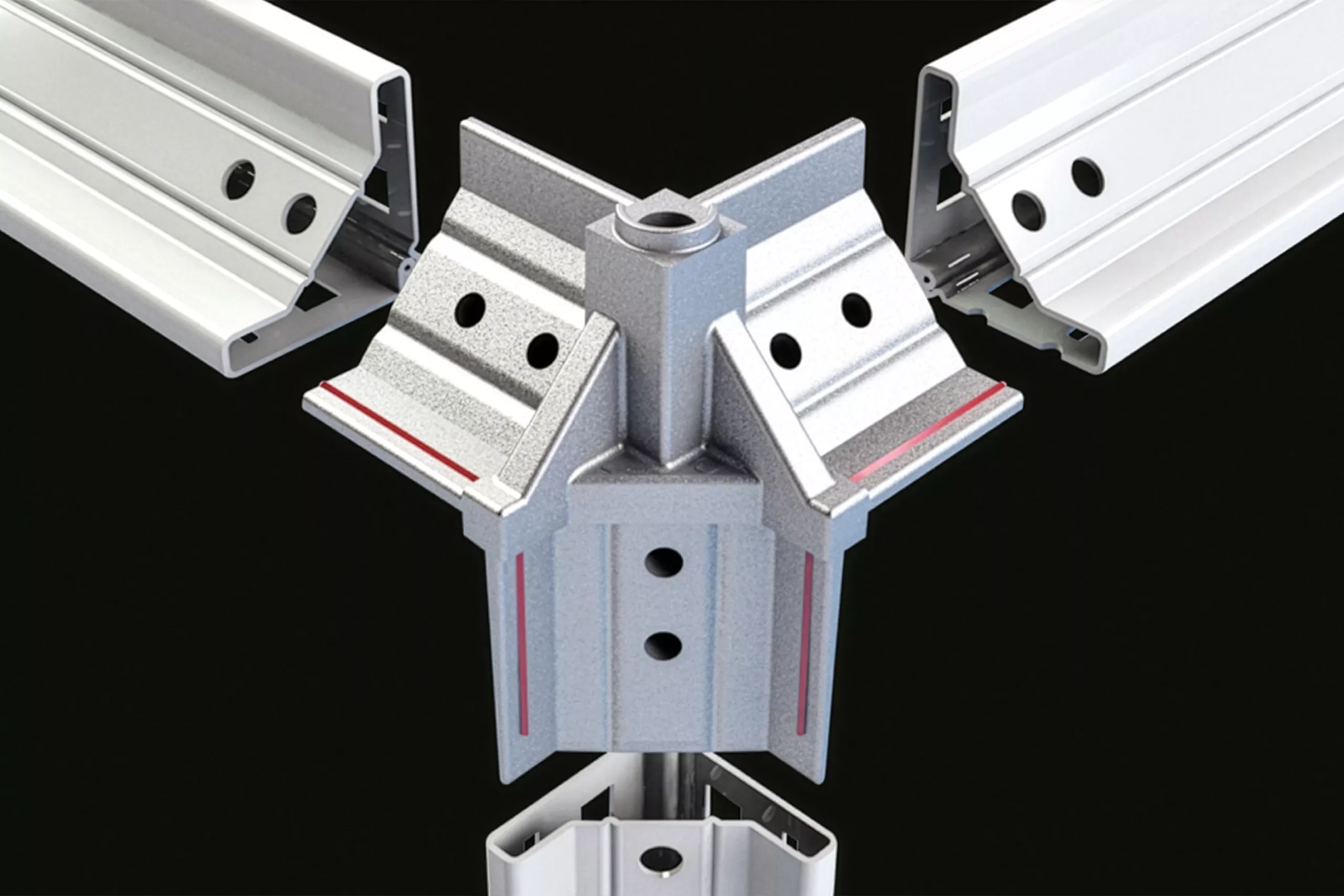

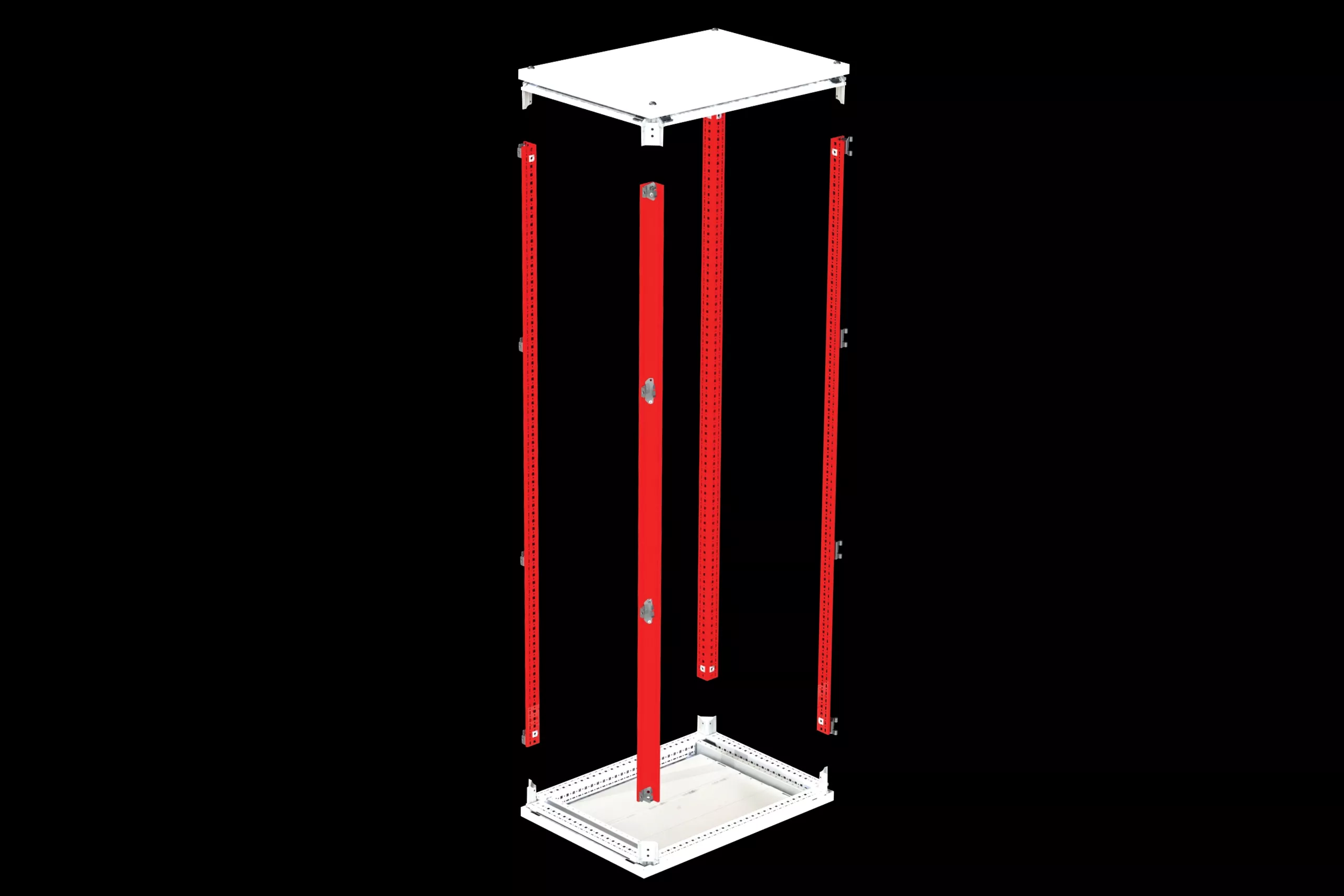

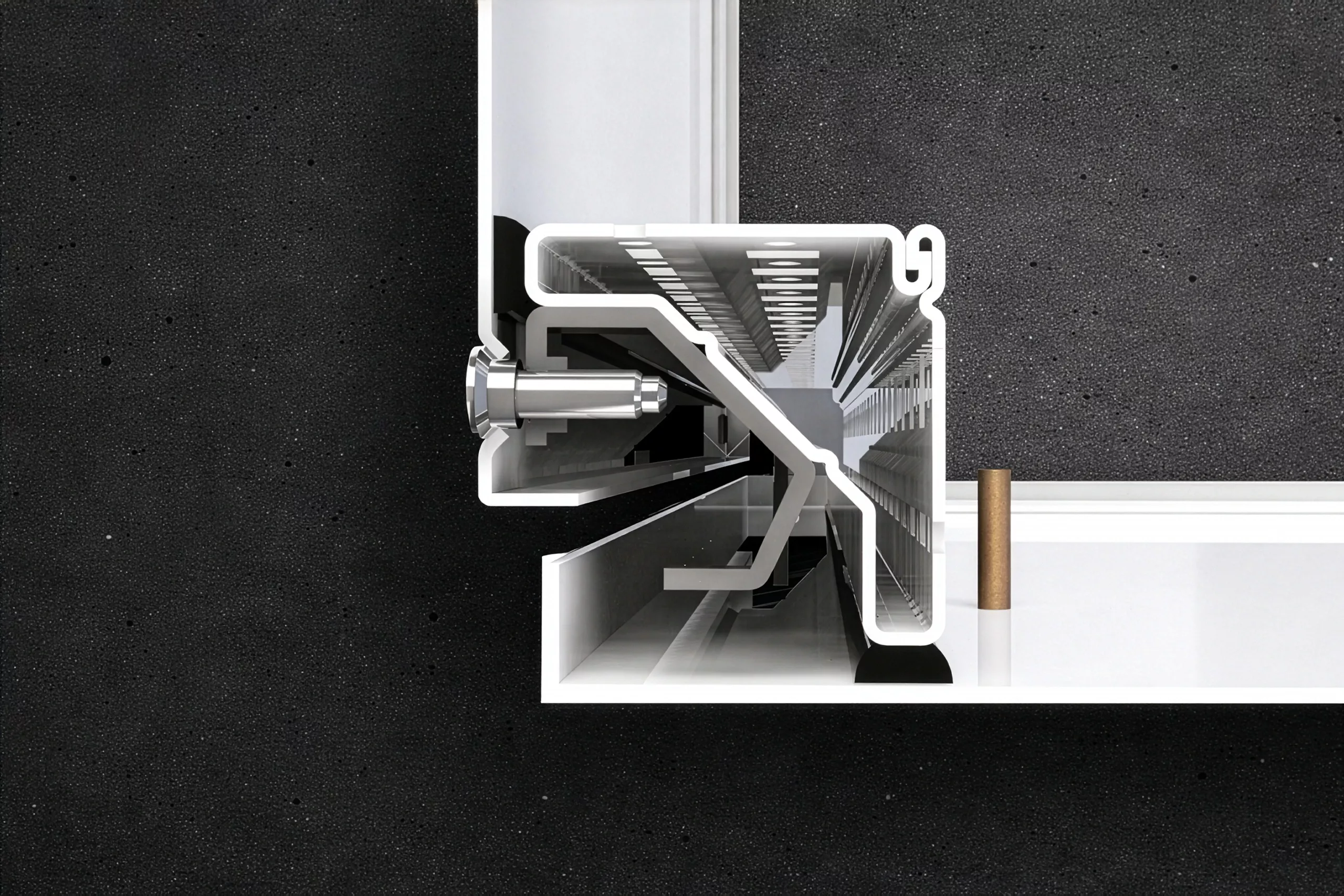

Frame 1,5mm, gland plates 1,5mm, Mounting Panel 3mm: DX51 Galvanized Steel

Surface Finish:
Frame, door(s), rear wall, roof: Nano coating primed, RAL 7035 Light Gray with textured powder coated

Supply Includes:

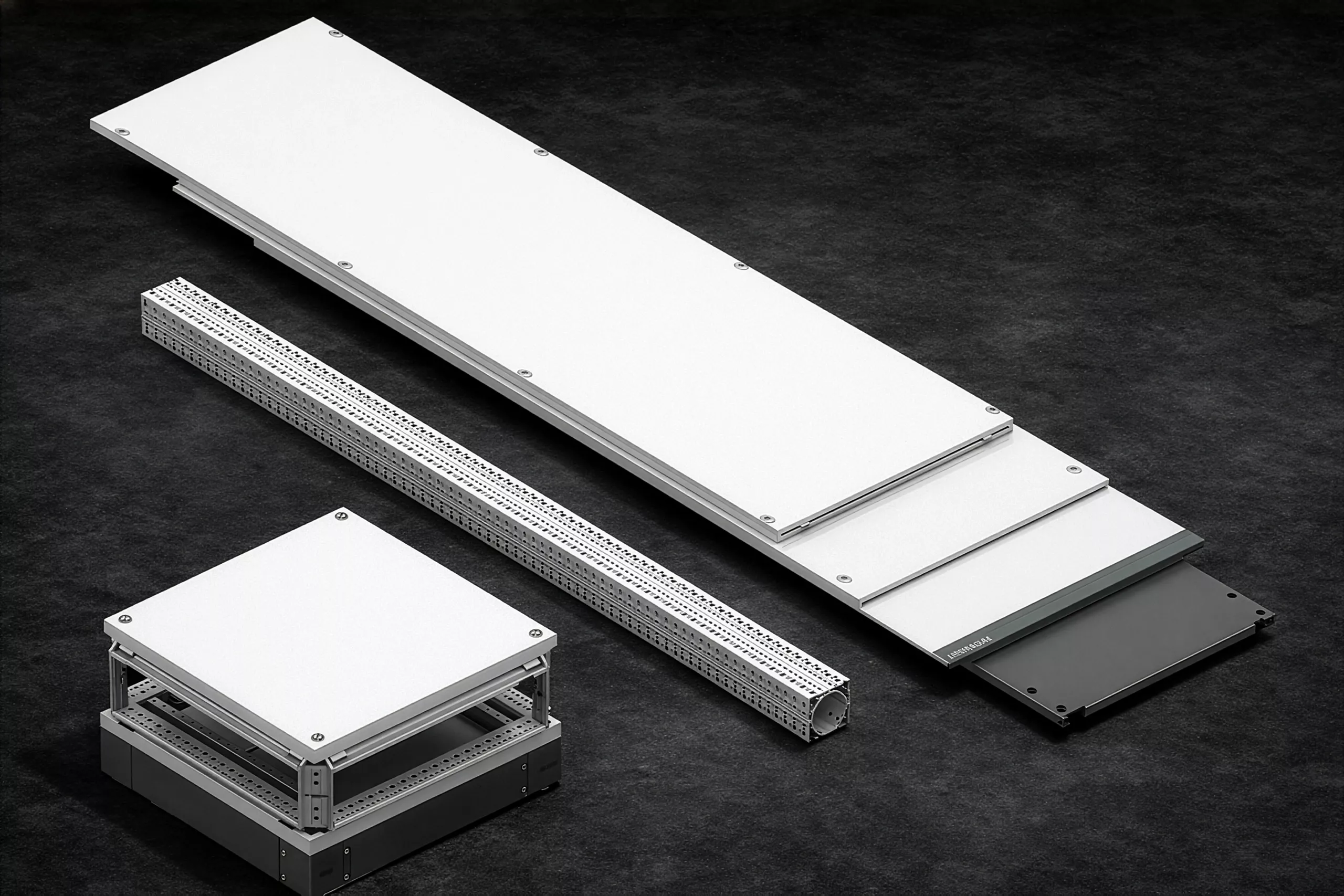

Modular flat-pack enclosure pack selection (see “Sizes/Order Codes” for details)

Options:
Plinth, side walls, baying kit, and other accessories
